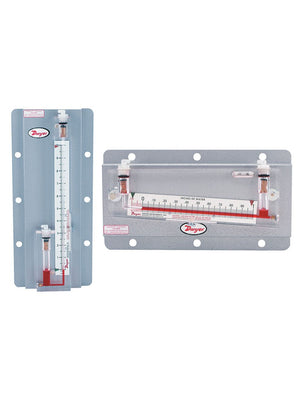

215 | Solid plastic stationary gage | range .05-0-.25" w.c. | .005 minor div. | 6" scale | 2 lb 14 oz. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 215

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 215 Documents

200/300 Durablock®Series 200 & 300 Catalog Page Red Gage Fluid - English Red Gage Fluid - French Red Gage Fluid - German Red Gage Fluid - Spanish 200/300 More Info

Overview

Details for 215

Dwyer Instruments NCO-215 Stationary Gage .05-2.5" The Dwyer Instruments NCO-215 stationary gage is a precise and reliable instrument for measuring pressure or vacuum in industrial settings. Crafted by Dwyer Instruments, a trusted name in industrial measurement solutions, this gage offers superior accuracy and durability. With its wide measuring range of 0.05 to 2.5 inches of water column, the NCO-215 is ideal for a variety of applications, including HVAC systems, air compressors, and process lines. Key Features: * Precise dial indicator provides clear and accurate readings * Rugged construction withstands harsh industrial environments * Durable brass internals ensure long-lasting performance * Compact design allows for easy installation in tight spaces * Wall mountable for convenient positioning Applications: * Monitor pressure or vacuum in HVAC systems * Measure air flow in compressors and ducting * Diagnose pressure issues in process lines * Calibrate other pressure measurement devices Trust the Dwyer Instruments NCO-215 stationary gage for precise and reliable pressure and vacuum measurements in your industrial applications. Our HVAC supply store offers the best prices and fast shipping on all Dwyer Instruments products. Order now and experience the exceptional quality and accuracy of the NCO-215.

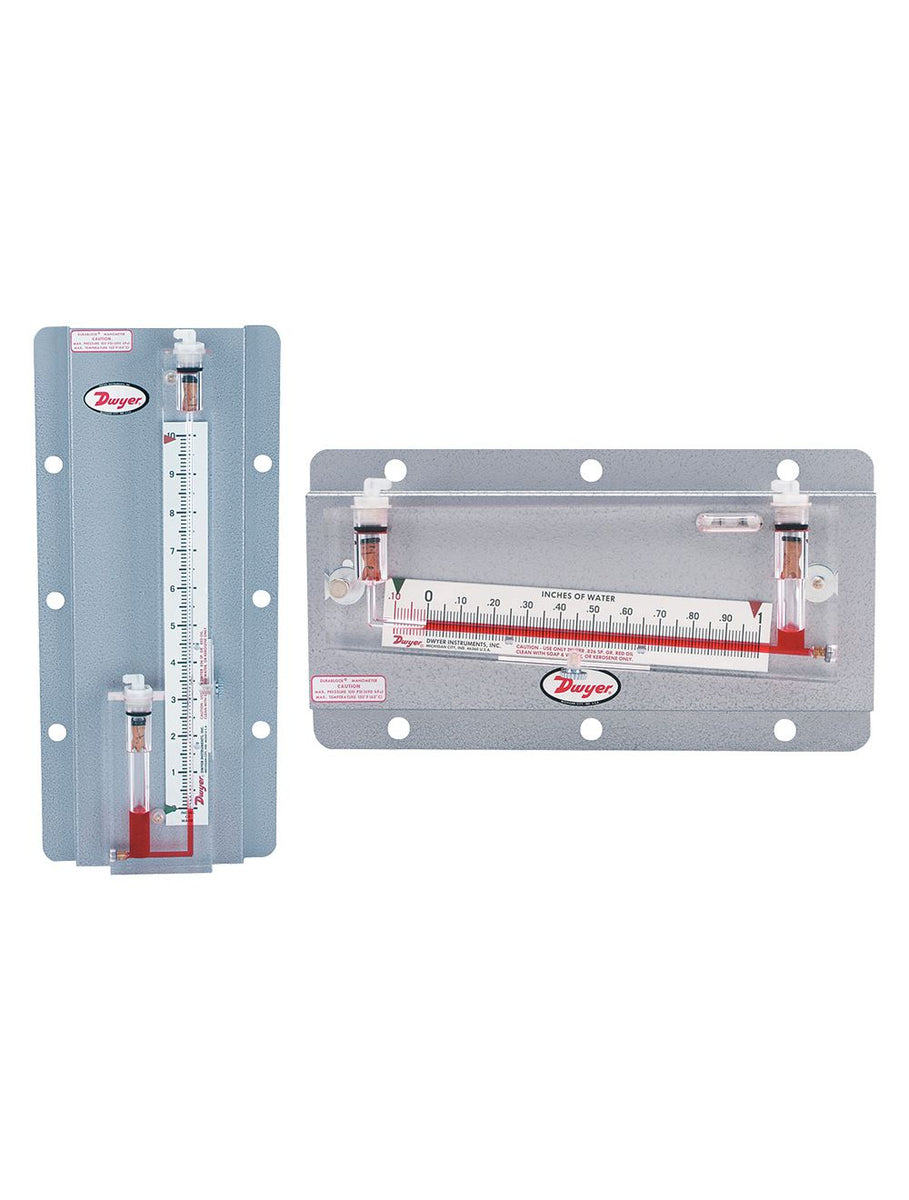

Series 200 & 300 Durablock® Solid Plastic Stationary Gage

Suitable for Total Pressures Up to 100 psig, Temperatures Up to 150°F, Accuracy ±2% of Full Scale (1% on Models 215, 244, 246 Only)

Dwyer® Series 200 & 300 Durablock® Solid Plastic Stationary Gages, or draft gages,are offered in inclined and vertical (well-type) styles for highly accurate laboratoryor general industrial service, for measurement of low range gas and air pressures,positive, negative or differential. To assure the accuracy required in instruments of thistype, all machining of bores and wells is to the highest standards of precision backedby Dwyer’s years of experience in the fabrications of acrylic instruments.

NIST CALIBRATION available in Product Configurator.

Click here, if you require a Safety Data Sheet for the Red Gage Fluid.

Product Applications

Low pressure laboratory and industrial service applications

1" Thick Acrylic Plastic Body is a solid block, virtually unbreakable, stable and free of the danger of distortion.
Drilled Bore Accurate to ±.0002" free of bends or crooks, will not require recalibration because of distortion.
Selected Gage Fluid with high wetability characteristics forms a consistent, well shaped meniscus for most accurate readability.
Adjustable Reflective Polished Aluminum Scales with thumbscrew locking for easy zeroing.
Parallax-Free Reading for maximum accuracy and consistency is achieved by simply aligning the meniscus with its image reflected in the scale.
Over-Pressure Safety Traps prevent loss of fluid due to over range pressures or surges in pressure. (Not required on No. 215.)
Leveling Adjustment for inclined style gages is achieved by simply loosening a locking thumb screw on the side or bottom of the gage, adjusting with reference to the integral sensitive ground glass bubble level and retightening.
Heavy Gage Steel Mounting Panels are gray hammerloid finished.
Precision Built assures device meets the highest standards
Standard units have the A-315 3/16" ID tubing connectors, more connection options in the product configurator.
