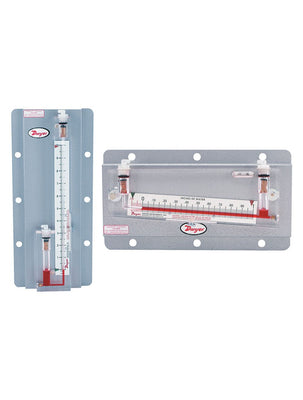

202.5 | Solid plastic stationary gage | range .20-0-2.0" w.c. | .01 minor div. | 8-3/4" scale | 4 lb 7 oz. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 202.5

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 202.5 Documents

200/300 Durablock®Series 200 & 300 Catalog Page Red Gage Fluid - English Red Gage Fluid - French Red Gage Fluid - German Red Gage Fluid - Spanish 200/300 More Info

Overview

Details for 202.5

Dwyer Instruments .20-0-2.0 Inclined Manometer (SKU: 202.5) The Dwyer Instruments .20-0-2.0 Inclined Manometer is a versatile and precise instrument designed to measure pressure differences in various industrial applications. With its inclined design, it offers enhanced readability and accuracy for measuring low-pressure changes. Constructed from durable materials, the manometer provides long-lasting performance in demanding environments. Its inclined gauge provides a clear visual indication of pressure readings, making it easy to monitor pressure variations accurately. The manometer is ideal for a wide range of applications, including measuring air pressure, gas flow, and vacuum levels. Its compact size and portable design make it convenient for use in various settings. Technical Specifications: - Measurement Range: .20-0-2.0 in. water column - Accuracy: Â±2% of full scale - Inclined Gauge for Enhanced Readability - Durable Construction for Long-Lasting Performance Trust our HVAC supply store for your pressure measurement needs! We offer competitive prices, fast shipping, and exceptional customer service. Shop now for the Dwyer Instruments .20-0-2.0 Inclined Manometer and experience the difference in precision and accuracy.

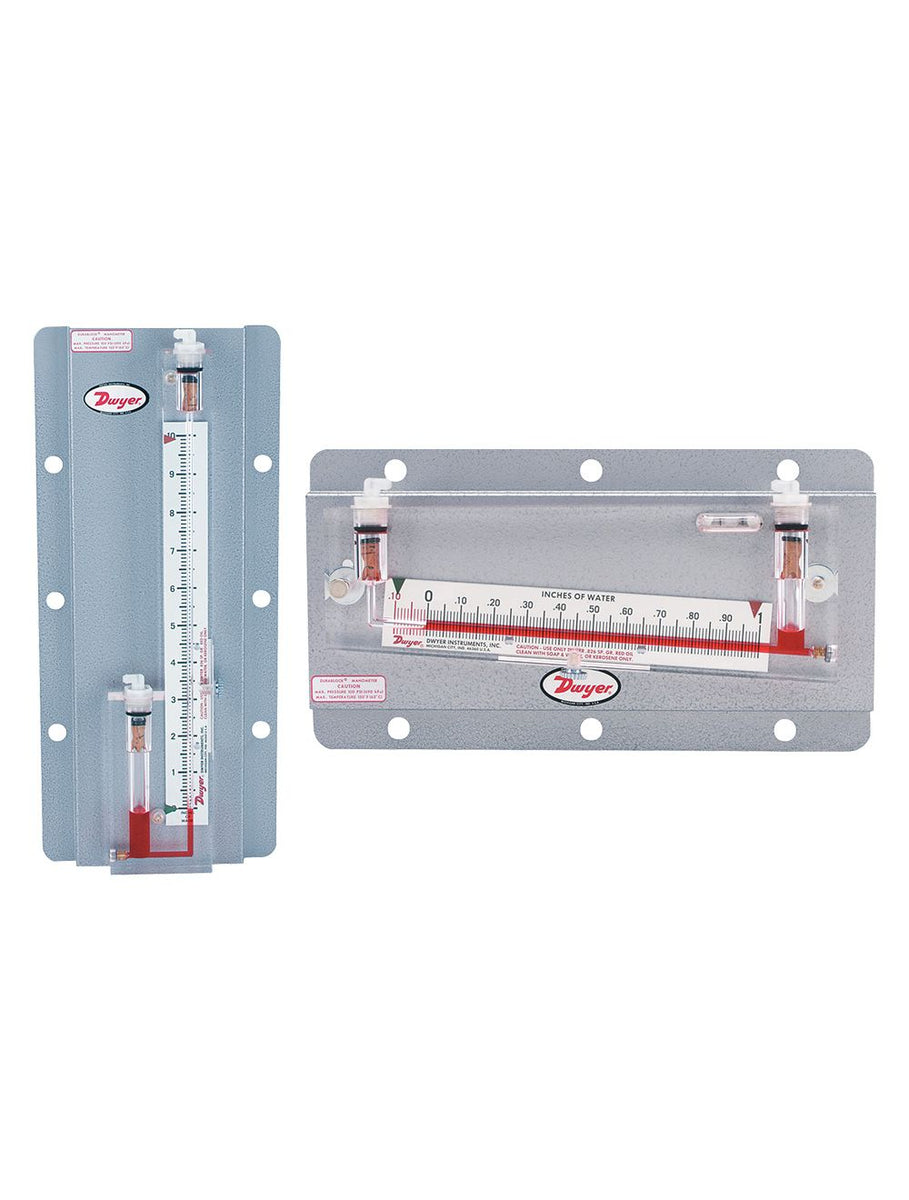

Series 200 & 300 Durablock® Solid Plastic Stationary Gage

Suitable for Total Pressures Up to 100 psig, Temperatures Up to 150°F, Accuracy ±2% of Full Scale (1% on Models 215, 244, 246 Only)

Dwyer® Series 200 & 300 Durablock® Solid Plastic Stationary Gages, or draft gages,are offered in inclined and vertical (well-type) styles for highly accurate laboratoryor general industrial service, for measurement of low range gas and air pressures,positive, negative or differential. To assure the accuracy required in instruments of thistype, all machining of bores and wells is to the highest standards of precision backedby Dwyer’s years of experience in the fabrications of acrylic instruments.

NIST CALIBRATION available in Product Configurator.

Click here, if you require a Safety Data Sheet for the Red Gage Fluid.

Product Applications

Low pressure laboratory and industrial service applications

1" Thick Acrylic Plastic Body is a solid block, virtually unbreakable, stable and free of the danger of distortion.
Drilled Bore Accurate to ±.0002" free of bends or crooks, will not require recalibration because of distortion.
Selected Gage Fluid with high wetability characteristics forms a consistent, well shaped meniscus for most accurate readability.
Adjustable Reflective Polished Aluminum Scales with thumbscrew locking for easy zeroing.
Parallax-Free Reading for maximum accuracy and consistency is achieved by simply aligning the meniscus with its image reflected in the scale.
Over-Pressure Safety Traps prevent loss of fluid due to over range pressures or surges in pressure. (Not required on No. 215.)
Leveling Adjustment for inclined style gages is achieved by simply loosening a locking thumb screw on the side or bottom of the gage, adjusting with reference to the integral sensitive ground glass bubble level and retightening.
Heavy Gage Steel Mounting Panels are gray hammerloid finished.
Precision Built assures device meets the highest standards
Standard units have the A-315 3/16" ID tubing connectors, more connection options in the product configurator.
