2-5000-25MM | Differential pressure gage | range 0-25 mm w.c. | Dwyer Instruments

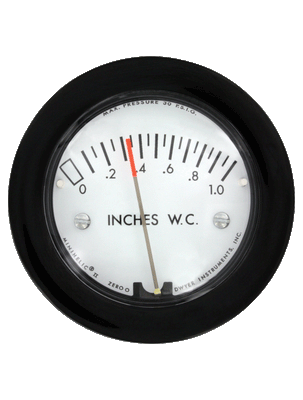

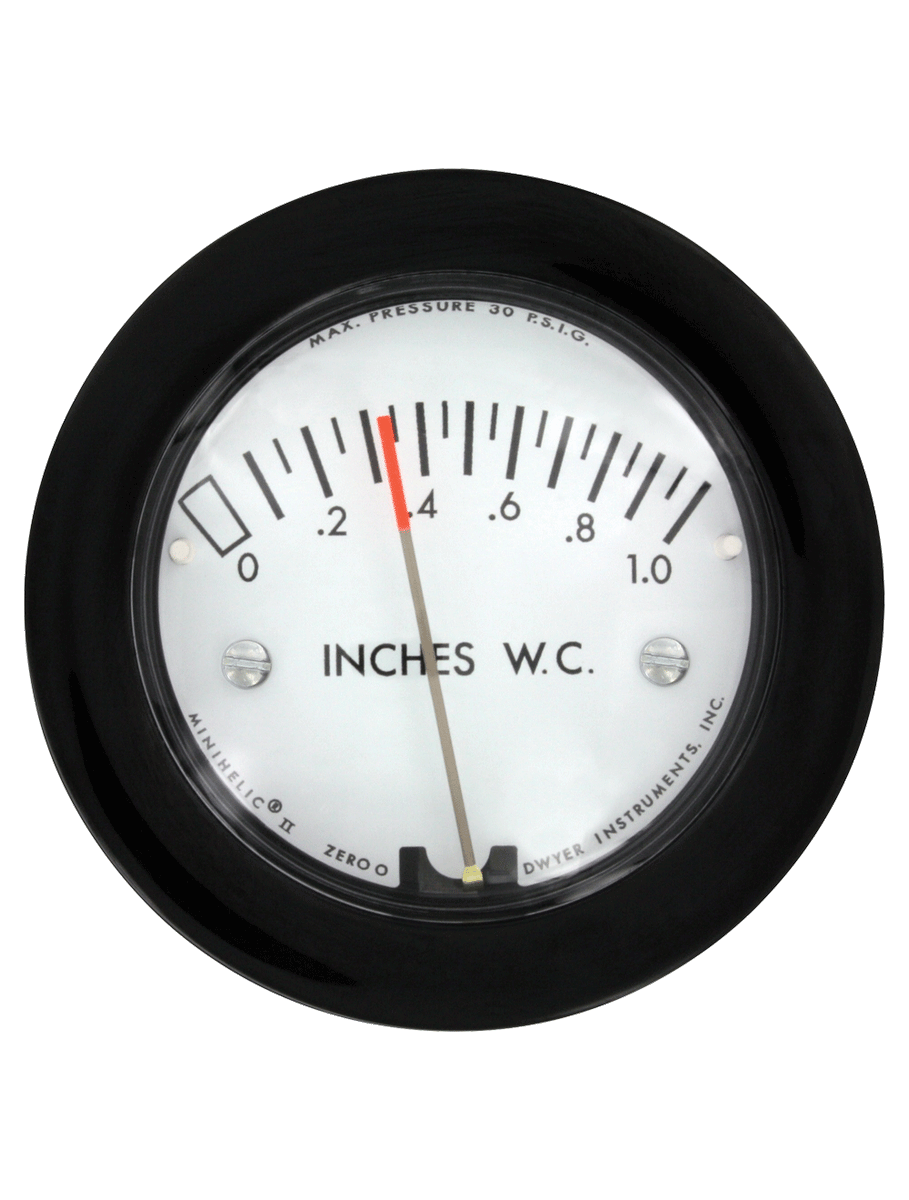

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2-5000-25MM

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 2-5000-25MM Documents

Instruction Manual Series 2-5000 Catalog Page 1132285 More Info

Overview

Details for 2-5000-25MM

Precise Pressure Measurement: (SKU: 2-5000-25MM) Dwyer Instruments NCO-2-5000-25MM-DWYER Differential Pressure Gauge The Dwyer Instruments NCO-2-5000-25MM-DWYER is a high-precision differential pressure gauge designed to provide accurate and reliable pressure readings in various industrial applications. This gauge is commonly used by engineers and maintenance professionals for precise pressure measurement and troubleshooting. Key Features: 0-25 MM of water differential pressure range for low-pressure applications Durable construction with a stainless steel diaphragm for corrosion resistance Versatile mounting options for easy installation Compact size enables installation in confined spaces Clear and easy-to-read analog display for quick pressure readings Applications: Airflow measurement and balancing in HVAC systems Leak detection and pressure testing in piping and tubing Calibration of other pressure gauges and instruments Monitoring pressure in cleanrooms and laboratories Hydraulic and pneumatic system pressure measurement Shop our HVAC supply store for the Best Value: our HVAC supply store offers competitive pricing and fast shipping for the Dwyer Instruments NCO-2-5000-25MM-DWYER Differential Pressure Gauge. Our commitment to customer satisfaction and technical support ensures you get the best value for your money. Upgrade your pressure measurement capabilities with this high-quality gauge from our HVAC supply store!

Series 2-5000 Minihelic® II Differential Pressure Gage

Combining High Accuracy, Compactness, Dependability, and Low Cost

Combining clean design, small size and low cost with enough accuracy for all but the most demanding applications our Series 2-5000 Minihelic® II Differential PressureGage offers the latest in design features for a dial type differential pressure gage. It is our most compact gage but is easy to read and can safely operate at total pressures up to 30 psig.

NIST CALIBRATION available in Product Configurator.

DID YOU KNOW that you can add YOUR logo to our Minihelic® Pressure Gage, call customer service for details.

Product Applications

Room Positive Pressure Sensing
Local Indication on Filter Status

Removable lens and rear-housing provides easy, cost-effective servicing
Accuracy and value provides an excellent solution for OEM and user applications
Durable housing materials make it well-suited for rough environments and total highpressure

Specifications

Series: 2-5000 Minihelic® II Differential Pressure Gage
Category/Type: Pressure
Type: Differential Pressure
Series: 2-5000 Minihelic® II Differential Pressure Gage
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Housing: Glass filled nylon; polycarbonate lens.
Accuracy: ±5% of FS at 70°F (21.1°C).
Pressure Limits: 30 psig (2.067 bar) continuous to either pressure connection.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections: Barbed; for 3/16" ID tubing (standard); 1/8" male NPT (optional).
Weight: 6 oz (170.1g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
: CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE NON-CORROSIVE GASES.
