2-5000-100MM | Differential pressure gage | range 0-100 mm w.c. | Dwyer Instruments

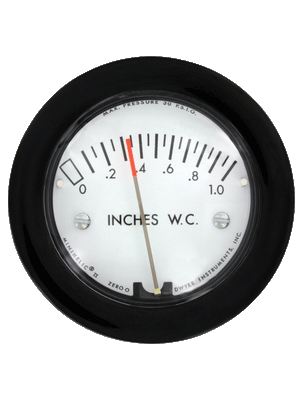

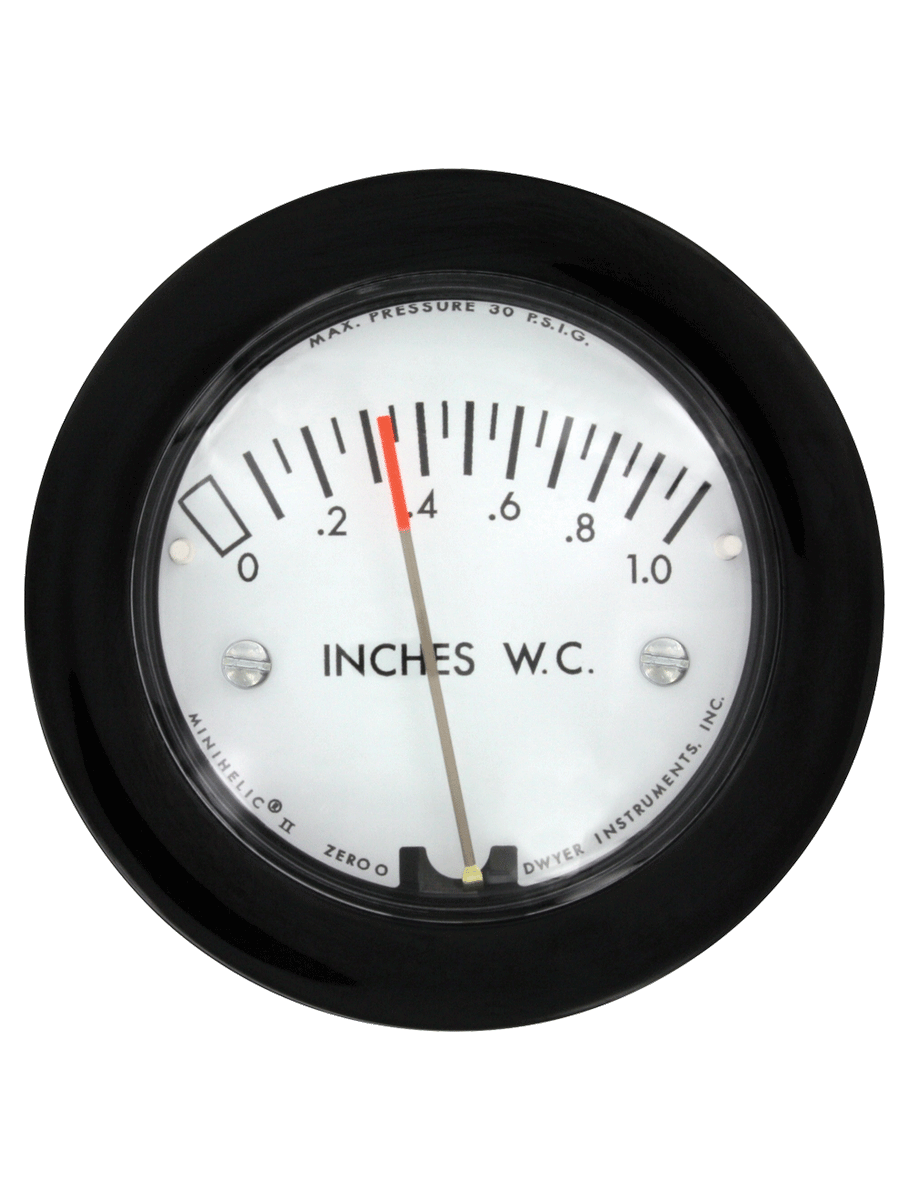

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2-5000-100MM

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 2-5000-100MM Documents

Instruction Manual Series 2-5000 Catalog Page 1132285 More Info

Overview

Details for 2-5000-100MM

NCO-2-5000-100MM: MINIHELIC GAGE 0-100 Dwyer Instruments' NCO-2-5000-100MM is a compact and reliable pressure gauge designed for measuring air or gas pressure in a wide range of applications. With its 0-100 mm water column measurement range, this gauge provides precise and easy-to-read pressure readings. Crafted from durable brass for enhanced longevity, this pressure gauge features a highly visible dial for effortless readings even in dimly lit environments. Its accuracy of Â±2% of full scale ensures accurate pressure measurements, while the pressure connection is conveniently located at the bottom of the gauge for easy installation. Ideal for industrial,HVAC, and laboratory applications, the NCO-2-5000-100MM is compatible with a variety of media, including air, nitrogen, and natural gas. Its compact size makes it suitable for installations where space is limited. Our HVAC supply store | The Industry Leader: We are proud to offer the NCO-2-5000-100MM pressure gauge from Dwyer Instruments. Our commitment to providing the best prices and fast shipping ensures that you receive the products you need, when you need them. Shop now and experience the Our HVAC supply store difference!

Series 2-5000 Minihelic® II Differential Pressure Gage

Combining High Accuracy, Compactness, Dependability, and Low Cost

Combining clean design, small size and low cost with enough accuracy for all but the most demanding applications our Series 2-5000 Minihelic® II Differential PressureGage offers the latest in design features for a dial type differential pressure gage. It is our most compact gage but is easy to read and can safely operate at total pressures up to 30 psig.

NIST CALIBRATION available in Product Configurator.

DID YOU KNOW that you can add YOUR logo to our Minihelic® Pressure Gage, call customer service for details.

Product Applications

Room Positive Pressure Sensing
Local Indication on Filter Status

Removable lens and rear-housing provides easy, cost-effective servicing
Accuracy and value provides an excellent solution for OEM and user applications
Durable housing materials make it well-suited for rough environments and total highpressure

Specifications

Series: 2-5000 Minihelic® II Differential Pressure Gage
Category/Type: Pressure
Type: Differential Pressure
Series: 2-5000 Minihelic® II Differential Pressure Gage
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Housing: Glass filled nylon; polycarbonate lens.
Accuracy: ±5% of FS at 70°F (21.1°C).
Pressure Limits: 30 psig (2.067 bar) continuous to either pressure connection.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections: Barbed; for 3/16" ID tubing (standard); 1/8" male NPT (optional).
Weight: 6 oz (170.1g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
: CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE NON-CORROSIVE GASES.
