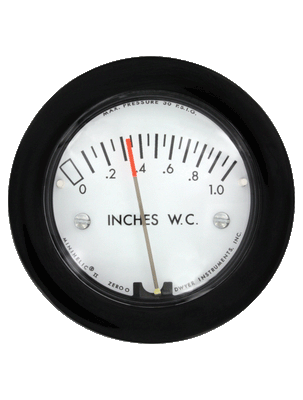

2-5000-0 | Differential pressure gage | range 0-0.5" w.c. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2-5000-0

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 2-5000-0 Documents

Instruction Manual Series 2-5000 Catalog Page 1132285 More Info

Overview

Details for 2-5000-0

Dwyer NCO-2-5000-0 Minihelic Pressure Gauge: Precision for Industrial ApplicationsThe Dwyer NCO-2-5000-0 Minihelic Differential Pressure Gauge is a reliable and precise instrument designed for a wide range of industrial applications. Featuring a compact and durable design, this gauge accurately measures differential pressure ranging from 0 to 0.5" WC. Construction and Features: - Robust aluminum housing ensures durability and corrosion resistance - Clear and easy-to-read 2.5" dial provides accurate readings - Adjustable zero point allows for precise calibration - Convenient panel mounting design for easy installation Applications: The NCO-2-5000-0 gauge is ideal for measuring differential pressure in various industrial processes, including: - Airflow monitoring in HVAC systems - Pressure drop measurement in filters and ductwork - Leak detection and monitoring in pipes and vessels Shop our HVAC supply store for the Best Prices: At our HVAC supply store, we offer the most competitive prices and fast shipping for a vast selection of industrial products, including the Dwyer NCO-2-5000-0 Minihelic Differential Pressure Gauge. Order now and experience the benefits of precision pressure measurement for your applications!

Series 2-5000 Minihelic® II Differential Pressure Gage

Combining High Accuracy, Compactness, Dependability, and Low Cost

Combining clean design, small size and low cost with enough accuracy for all but the most demanding applications our Series 2-5000 Minihelic® II Differential PressureGage offers the latest in design features for a dial type differential pressure gage. It is our most compact gage but is easy to read and can safely operate at total pressures up to 30 psig.

NIST CALIBRATION available in Product Configurator.

DID YOU KNOW that you can add YOUR logo to our Minihelic® Pressure Gage, call customer service for details.

Product Applications

Room Positive Pressure Sensing
Local Indication on Filter Status

Removable lens and rear-housing provides easy, cost-effective servicing
Accuracy and value provides an excellent solution for OEM and user applications
Durable housing materials make it well-suited for rough environments and total highpressure

Specifications

Series: 2-5000 Minihelic® II Differential Pressure Gage
Category/Type: Pressure
Type: Differential Pressure
Series: 2-5000 Minihelic® II Differential Pressure Gage
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Housing: Glass filled nylon; polycarbonate lens.
Accuracy: ±5% of FS at 70°F (21.1°C).
Pressure Limits: 30 psig (2.067 bar) continuous to either pressure connection.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections: Barbed; for 3/16" ID tubing (standard); 1/8" male NPT (optional).
Weight: 6 oz (170.1g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
: CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE NON-CORROSIVE GASES.
