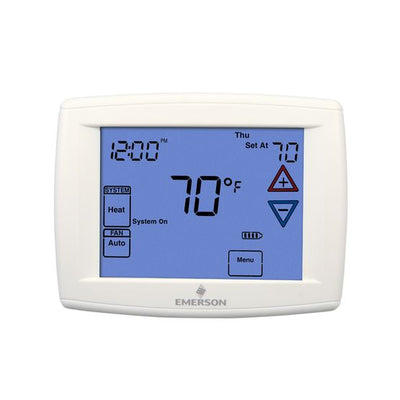

1F97-1277 | Blue Series 12 Inch Touchscreen Thermostat | Universal Multi Stage | Emerson Climate-White Rodgers
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1F97-1277
Documents and manuals
Emerson Climate-White Rodgers 1F97-1277 Documents
Overview
Details for 1F97-1277
Emerson Climate-White Rodgers TouchScreen 1 Stage 7-Day RemSns, SKU: 1F97-1277. This user-friendly thermostat features a large, high-resolution touchscreen for precise temperature control. With its advanced programming capabilities, it offers flexible scheduling options for customized comfort. Ideal for residential and light commercial applications, this thermostat provides energy-efficient temperature management and enhances occupant comfort. Its easy-to-use interface and intuitive design make it a convenient and reliable choice for managing your indoor climate.
Universal, Commercial, Humidity Control and Single Stage Thermostats provide ultimate comfort, features and performance.
- Universal models quickly configure for single stage, multi-stage or heat pump
- Heat pump dual fuel option (with or without outdoor sensor) eliminates the need for a fossil fuel kit
- Humidification/dehumidification control
- Commercial model offers occupied damper or economizer control
- Keypad lockout and set-point temperature limits
Specifications
- Program Options
- Programmable - 7 Day, 5+1+1 Day or Non-Programmable
- Program Periods Per Day Options
- 4, 2, None
- Stages Heat/Cool
- Universal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 3H/2C; 4H/2C on Dual Fuel systems when using an Outdoor Remote Sensor
- Style
- Horizontal
- Typical Applications
- Gas/Oil/Electric
- Terminals
- RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -
- 3-Wire Zone Valve Connections
- Yes
- Millivolt Compatible
- Yes
- Economizer Connections
- No
- Humidity Control
- No
- Heat Pump Dual Fuel Control
- Yes, Logic Option - No Sensor Required or Outdoor Sensor Option - Outdoor Sensor Provides Outdoor Temperature Setting to Lockout the Heat Pump and Switch to Gas Heat
- Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option
- Outdoor Sensor Provides Outdoor Temperature Setting to Lockout Auxiliary Heat
- Remote Sensor Options
- 1 Indoor or Outdoor
- Power Source
- Battery, Hardwire, Power Stealing
- Auto Changeover (Heat/Cool)
- Yes
- Fan Option
- Auto, On, Programmable Fan or Comfort Circulating Fan
- Filter Change Reminder
- Yes
- Energy Mgt. Recovery/Early Start
- Yes
- Keypad Lockout
- Total or Partial
- Set-Point Temperature Limits
- Yes
- Display Type
- 12 square in.
- Backlight
- Key Press or Continuous with Common Wire
- Voltage
- 20 to 30 Vac 50/60 Hz
- Amp Rating
- 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
- Set-Point Range
- 45 to 99°F (7 to 37°C)
