1E78-140 | Classic 70 Series Thermostat | Conventional Single Stage | Emerson Climate-White Rodgers

Emerson Climate-White Rodgers | 1E78-140

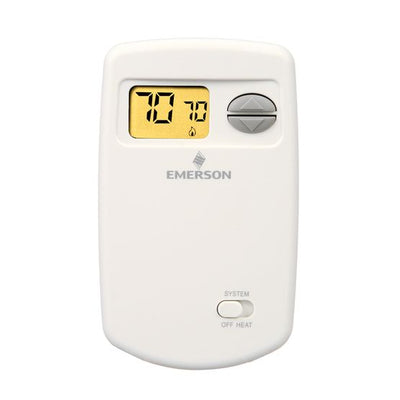

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1E78-140

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Emerson Climate-White Rodgers 1E78-140 Documents

Installation Instructions More Info

Overview

Details for 1E78-140

Designed for commercial and industrial applications, Emerson Climate-White Rodgers 1E78-140 24V HEAT NonProgDig Batt offers reliable performance and exceptional efficiency. Key Features: * 24-volt operation provides ample power for various applications * Non-programmable digital thermostat for simple and precise temperature control * Battery-powered operation ensures continuous operation during power outages * Compact design allows for easy installation in tight spaces * Compatible with various heating systems for versatile usage Benefits: * Maintains optimal temperature levels with accurate control * Battery backup prevents temperature fluctuations during power interruptions * Space-saving design simplifies installation and maintenance * Suitable for a wide range of heating applications, including industrial and commercial settings Applications: * Commercial and industrial buildings * Warehouses and manufacturing facilities * Retail stores and offices * Schools and hospitals Choose Emerson Climate-White Rodgers 1E78-140 for reliable temperature control and energy efficiency. Our HVAC supply store offers competitive prices and fast shipping for all your industrial needs. Shop now and experience the difference!

The perfect upgrade from mechanical thermostat available as a Single Stage offering economy and value with proven reliability.

Vertical model
Non-programmable model
Selectable Celsius or Fahrenheit temperature display
Fossil fuel or electric heat compatible
Electronic accuracy
Temperature accuracy for customers on a budget

Specifications

Program Options: Non-Programmable
Program Periods Per Day Options: None
Stages: Single Stage - 1H/1C
Style: Horizontal
Typical Applications: Gas/Oil/Electric, Does not control fan on a call for heat
Terminals: RH, W
3-Wire Zone Valve Connections: No
Millivolt Compatible: Yes
Economizer Connections: No
Humidity Control: No
Heat Pump Dual Fuel Control: No
Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
Remote Sensor Options: None
Power Source: Battery
Auto Changeover (Heat/Cool): No
Fan Option: Auto, On
Filter Change Reminder: No
Energy Mgt. Recovery/Early Start: No
Keypad Lockout: No
Set-Point Temperature Limits: No
Display Type: 1.2 square in.
Backlight: Key Press
Voltage: 20 to 30 Vac 50/60 Hz
Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
Set-Point Range: 45 to 99°F (7 to 37°C)
