1E30N-910 | Standard Mechanical Thermostat | Emerson Climate-White Rodgers

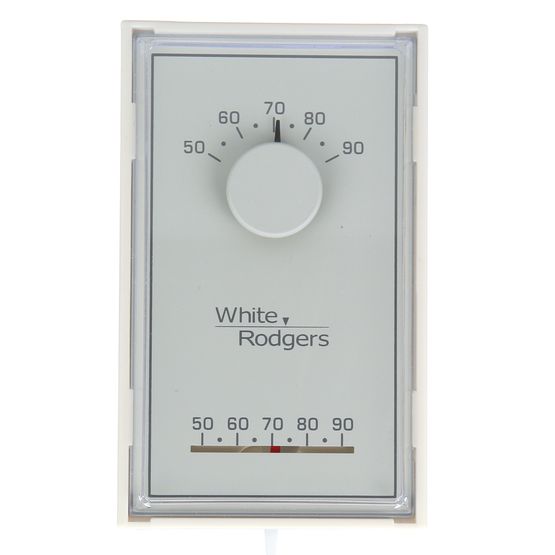

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 1E30N-910
Documents and manuals
Emerson Climate-White Rodgers 1E30N-910 Documents
Overview
Details for 1E30N-910
24v HtOnly SnapAction: 1E30N-910 by Emerson Climate-White Rodgers
Emerson Climate-White Rodgers 1E30N-910 is a 24v HtOnly SnapAction product used for commercial and industrial applications. This product is reliable, efficient, and built to last. 1E30N-910 by Emerson Climate-White Rodgers is a great choice for various industrial applications.
Our HVAC supply store offers the best prices and fast shipping for all your product needs.
Order now at midwestsupply.com!
Mercury-free replacement for White-Rodgers and competitive models installed over the past 50 years.
- Mercury free snap-action contacts with dust cover
- Vertical model
- Built in bimetal thermometer
- Same footprint since the introduction of the series saves time and aggravation, so wall marks are not a problem and no cover-up wallplate is necessary
- 24 volt or 750 mV options
Specifications
- Voltage
- mV to 30 Vac 50/60 Hz
- Stages Heat/Cool
- Single Stage - 1H/0C
- Style
- Vertical
- Typical Applications
- Gas/Oil/Electric, but does not control fan on a call for heat
- 3-Wire Zone Valve Connection
- No
- Millivolt Compatible
- Yes
- Heat Pump (No Auxiliary Heat)
- No
- Electric Heat Strip
- No
- Accessories
- Includes Wallplate Heat Only (No System or Fan Switch)
- Electric Heat Fan Control (Systems that Require (G terminal) on Call for Heat)
- No
- U.S. Only or Canadian Only Model
- U.S. only
- Control Range
- 50 to 90°F
- Terminals
- R, W
- Overall Dimensions
- 4.5”H X 2.75”W X 1.5”D
- Heat Anticipator
- Adjustable from 0.15 to 1.2 Amps
- Heat Anticipator
- Adjustable from 0.15 to 1.2 Amps
