1950-10-2F | Differential pressure switch | range 3-11" w.c. | approx. deadband @ min. set point 0.40 | approx. deadband @ max. set point 0.50. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1950-10-2F

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 1950-10-2F Documents

Instruction Manual Series 1950 Catalog Page 1950 More Info

Overview

Details for 1950-10-2F

3/11"WC XPrf Differential # Sw: A Precise Measuring Tool for Industrial ApplicationsThe Dwyer Instruments 1950-10-2F Differential Pressure Switch is a high-precision instrument designed to accurately measure differential pressure in a wide range of industrial settings. This switch features a rugged construction and reliable performance, making it ideal for demanding applications.Key Features:Accurate Measurement: The switch accurately measures differential pressure with a range of 3/11" WC, ensuring precise readings in critical processes.Differential Pressure Switch: It effectively monitors and controls the difference in pressure between two points, providing reliable pressure monitoring and control.Durable Construction: The switch is made from durable materials, ensuring longevity and reliability in harsh industrial environments.Versatile Applications: The 1950-10-2F is suitable for various industrial applications, including air conditioning, heating, ventilation, and pneumatic systems.Easy Installation: The switch is designed for easy installation and setup, minimizing downtime and ensuring efficient operation.Choose our HVAC supply store for Industrial Products and Solutions:At our HVAC supply store, we are committed to providing high-quality industrial products and solutions to meet your needs. Our team of experts can assist you in selecting the right products and provide technical support to ensure your operations run smoothly. We offer competitive prices, fast shipping, and exceptional customer service. Contact us today to learn more about our extensive product line and how we can support your business.

Series 1950 Explosion-proof Differential Pressure Switch

Compact, Low Cost, Explosion-proof and Weatherproof

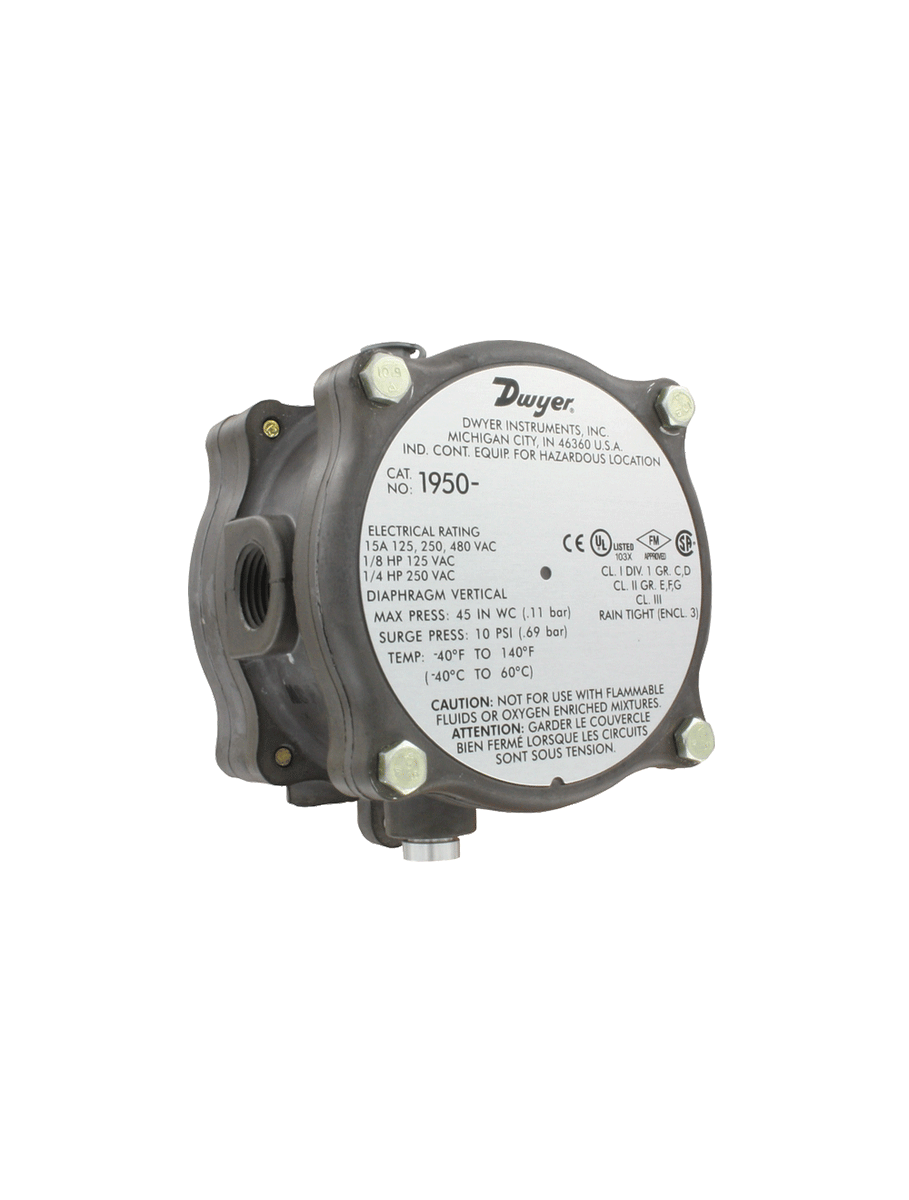

Series 1950 Explosion-Proof Differential Pressure Switch combines the best features of the popular Dwyer® Series 1900 Pressure Switch with an integral explosion-proof and weatherproof housing, making it an exceptional value for either application. It is CE, UL and CSA listed, FM approved for use in Class I, Div 1, Groups C and D, Class II Groups E, F, and G and Class III hazardous atmospheres (NEMA 7 & 9), Raintight NEMA 3 (IP54). Weatherproof features include a drain plug and O-ring seal in cover. Electrical connections are easily made by removing front cover. For convenience the set point adjustment screw is located on the outside of the housing. Twelve models offer set points from .03 to 20 in w.c. (0.0075 to 5 kPa) and from .5 to 50 psi (0.035 to 3.5 bar). The unit is very light and compact — about half the weight and bulk of other explosion-proof or weather-proof switches with separate enclosures.

CAUTION: For use only with air or compatible gases. Applications with hazardous atmospheres and a single positive pressure may require special venting.

Product Applications

HVAC applications
Process applications
All-weather applications

Explosion-proof and weatherproof housing provides device protection for outdoor use or harsh environment operation
External set point screw provides easy access that simplifies making adjustments without opening or disassembling enclosure
Easily accessible electrical connection simplifies the installation

Specifications

Series: 1950 Explosion-proof Differential Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: 1950 Explosion-proof Differential Pressure Switch
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Temperature Limits: -40 to 140°F (-40 to 60°C); 0 to 140°F (-17.8 to 60°C)for 1950P-8; 15; 25; and 50. -30 to 130°F (-34.4 to 54.4°C) for 1950-02.
Pressure Limits: Continuous: 1950's - 45" w.c. (0.11 bar); 1950P's - 35 psi (2.41 bar); 1950P-50 only - 70 psi (4.83 bar). Surge: 1950's - 10 psi (0.69 bar); 1950P's - 50 psi (3.45 bar); 1950P-50 only - 90 psi (6.21 bar).
Enclosure Rating: NEMA 3 (IP54); NEMA 7 and 9.
Switch Type: Single-pole double-throw (SPDT).
Electrical Rating: 15 A @ 125; 250; 480 VAC; 60 Hz. Resistive 1/8 HP @ 125 VAC; 1/4 HP @ 250 VAC; 60 Hz.
Electrical Connections: 3 screw type; common; normally open and normally closed.
Process Connections: 1/8" female NPT.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment: Screw type on top of housing.
Weight: 3.25 lb (1.5 kg); 1950-02 model 4.4 lb (2 kg).
Agency Approvals: CE; CSA; FM; UL.
