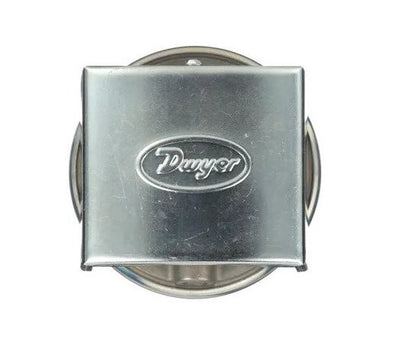

1823-1 | Differential pressure switch | range 0.3-1.0" w.c. | approx. deadband @ min. set point 0.08 | approx. deadband @ max. set point 0.08. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1823-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 1823-1 Documents

Instruction Manual Series 1800 Catalog Page 1800 More Info

Overview

Details for 1823-1

Dwyer Instruments 1823-1: Low Differential Pressure Switch The Dwyer Instruments 1823-1 differential pressure switch is a rugged and reliable choice for measuring low differential pressure in a variety of industrial applications. With its durable construction and precise sensing mechanism, the 1823-1 provides accurate and dependable pressure readings. Key Features: * Pressure range: 0.3" WC * Adjustable set point * Single-pole, double-throw (SPDT) electrical contacts * Compact and lightweight design * Mounts directly to a duct or pipe Benefits: * Monitors low differential pressure in HVAC systems, clean rooms, and other industrial environments * Prevents system damage or discomfort by triggering alarms or control actions based on pressure changes * Easy to install and maintain * Provides reliable and accurate pressure measurements Applications: * HVAC systems * Clean rooms * Industrial machinery * Process control * Leak detection Our HVAC supply store offers the best prices and fast shipping on the Dwyer Instruments 1823-1 low differential pressure switch. Shop now to get the reliable and accurate pressure monitoring you need for your industrial applications!

Series 1800 Low Differential Pressure Switch for General Industrial Service

Set Points from 0.07" to 85" w.c. Repetitive Accuracy within 2%

Essential for industrial environments, the Series 1800 Low Differential Pressure Switch for general industrial service combines small size and low price with 2% repeatability for all but the most demanding applications. Set point adjustment inside the mounting stud permits mounting the switch on one side of a wall or panel with adjustment easily accessible on the opposite side. UL and CSA listed, and FM approved.

CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE GASES.

Please see Series AT-1800 for ATEX approved.

Product Applications

Process applications
Mechanical equipment control

Compact size and repeatability provide a high-value switch for many industrial applications
Designed for panel and wall mounting to easily meet mounting requirements in most industrial settings
Pressure ranges from 0.07 in w.c. to 85 in w.c. make this switch suitable for a wide range of applications

Specifications

Series: 1800 Low Differential Pressure Switch for General Industrial Service
Category/Type: Pressure
Type: Differential Pressure
Series: 1800 Low Differential Pressure Switch for General Industrial Service
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult Factory.
Temperature Limits: -30 to 180°F (-34 to 82.2°C). 1823-00; -20 to 180°F (-28.9 to 82.2°C).
Pressure Limits: 10 psig (68.95 kPa) continuous; 25 psig (172.4 kPa) surge.
Switch Type: Single-pole double-throw (SPDT).
Repeatability: ±2%.
Electrical Rating: 15 A @ 120-480 VAC; 60 Hz. Resistive 1/8 HP @ 125 VAC; 1/4 HP @ 250 VAC; 60 Hz. De-rate to 10 A for operation at high cycle rates.
Electrical Connections: 3 screw type; common; normally open and normally closed.
Process Connections: 1/8" female NPT.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment: Screw type inside mounting spud.
Weight: 1 lb; 5 oz (595 g).
Agency Approvals: CE; CSA; FM; UL. NOTE: Optional (-EXPL) Explosion-proof Enclosure does not possess any agency approvals.
