16L2034 | Limit Control | (1) NO relay and (1) NC relay output. | Dwyer Instruments

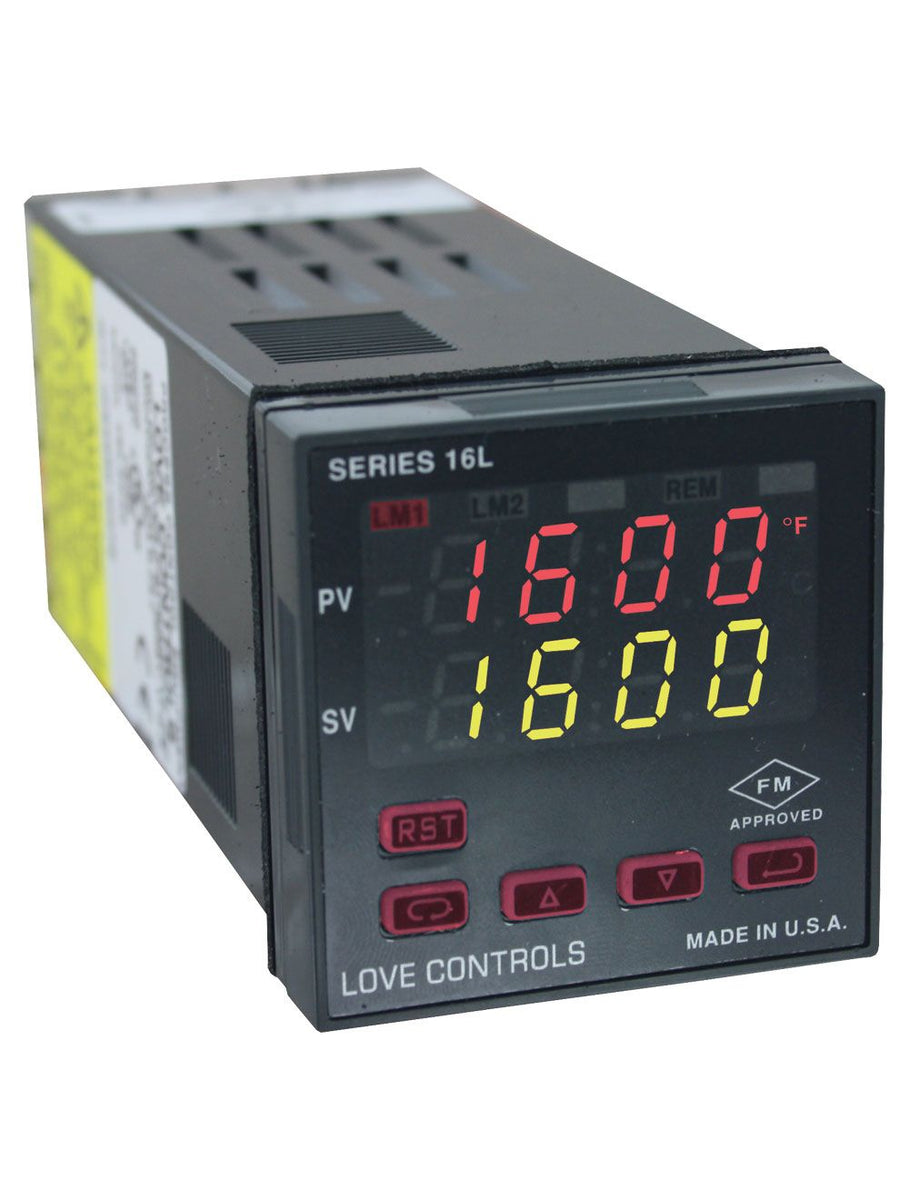

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 16L2034

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 16L2034 Documents

16L Series 16L Catalog Page More Info

Overview

Details for 16L2034

Dwyer Instruments MODEL 16L2034 RLY N.O./RLY NC is a reliable and efficient relay designed for a wide range of industrial applications. It features Normally Open (N.O.) and Normally Closed (N.C.) relay contacts, providing versatility for various control systems. Constructed with high-quality materials, the 16L2034 offers durability and long-lasting performance. Its compact design allows for easy installation in space-constrained environments. With its reliable operation and versatile contact configuration, the Dwyer Instruments MODEL 16L2034 RLY N.O./RLY NC is an ideal solution for industrial automation, process control, and safety systems. For the best prices and fast shipping on Dwyer Instruments products, choose our HVAC supply store!

Series 16L Limit Control

FM Approved, Large Dual Display, Universal Input

The Series 16L Limit Control offers FM approved limit control with universal input, single set point or dual set point control.

Product Applications

Gas fired heater limit control

Remote or integral reset button
Peak and valley temperature indication
Open sensor protection

Specifications

Series: 16L Limit Control
Category/Type: Process Control
Type: Process Controllers
Series: 16L Limit Control
Selectable Input: 10 Thermocouple; 4 RTD; DC Voltage; or DC current selectable.
Display: Two 4 digit; 7 segment 0.3" (7.62 mm) high LEDs.
Accuracy: ±0.25% of span; ±1 least significant digit.
Power Requirements: 100 to 240 VAC; nominal; +10 - 15%; 50 to 400 Hz. single phase; 132 to 240 VDC; nominal; +10 - 20%.
Power Consumption: 5 VA maximum.
Temperature Limits: 14 to 131°F (-10 to 55°C).
Memory Backup: Nonvolatile memory. No batteries required.
Output: Relay: SPST; 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive.
Weight: 8 oz (227 g).
Front Panel Rating: NEMA 4X (IP66).
Agency Approvals: FM; cULus.
