16L2030 | Limit Control | (1) NO relay output. | Dwyer Instruments

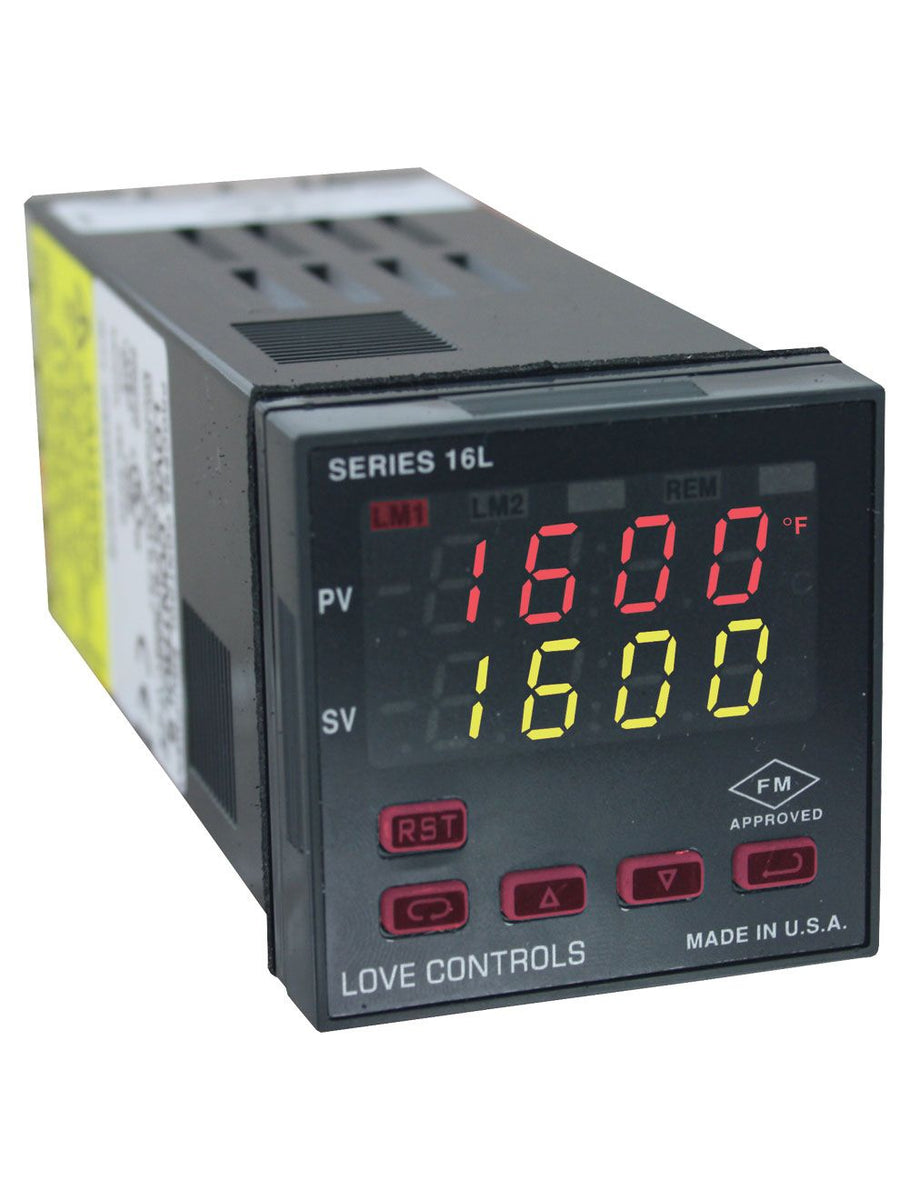

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 16L2030

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 16L2030 Documents

16L Series 16L Catalog Page More Info

Overview

Details for 16L2030

Dwyer Instruments 16L2030: Optimizing Process Control with Precision The Dwyer Instruments 16L2030 Process Limit Switch provides unmatched accuracy and reliability in controlling industrial processes. Featuring a normally open (N/O) relay, this robust device ensures failsafe operation by triggering an alarm or activating emergency shutdowns when process parameters exceed predetermined limits. Engineered for precise control, the 16L2030 utilizes a pressure range of up to 20 psig and a temperature range of -20 to 150Â°F, catering to diverse industrial applications. Its high-quality construction ensures durability and longevity in harsh environments. The 16L2030 is an indispensable tool for maintaining optimal process conditions. Its versatility extends to liquid level control, pump protection, and alarm activation for critical process parameters. Whether you seek enhanced safety, reduced downtime, or improved efficiency, the Dwyer Instruments 16L2030 stands as a reliable solution. Shop our HVAC supply store today and leverage our exceptional prices and swift delivery services. Our commitment to customer satisfaction ensures that you receive the best value for your investment in industrial automation and control.

Series 16L Limit Control

FM Approved, Large Dual Display, Universal Input

The Series 16L Limit Control offers FM approved limit control with universal input, single set point or dual set point control.

Product Applications

Gas fired heater limit control

Remote or integral reset button
Peak and valley temperature indication
Open sensor protection

Specifications

Series: 16L Limit Control
Category/Type: Process Control
Type: Process Controllers
Series: 16L Limit Control
Selectable Input: 10 Thermocouple; 4 RTD; DC Voltage; or DC current selectable.
Display: Two 4 digit; 7 segment 0.3" (7.62 mm) high LEDs.
Accuracy: ±0.25% of span; ±1 least significant digit.
Power Requirements: 100 to 240 VAC; nominal; +10 - 15%; 50 to 400 Hz. single phase; 132 to 240 VDC; nominal; +10 - 20%.
Power Consumption: 5 VA maximum.
Temperature Limits: 14 to 131°F (-10 to 55°C).
Memory Backup: Nonvolatile memory. No batteries required.
Output: Relay: SPST; 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive.
Weight: 8 oz (227 g).
Front Panel Rating: NEMA 4X (IP66).
Agency Approvals: FM; cULus.
