16C-3 | 1/16 DIN temperature controller | relay output. | Dwyer Instruments

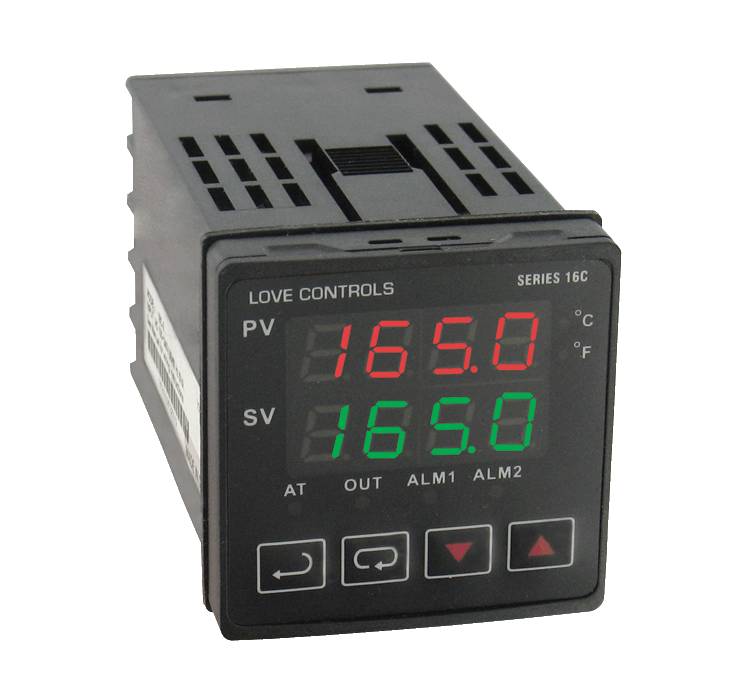

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 16C-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 16C-3 Documents

16C Quick Start Snubber Application Note 16C Instruction Manual Series 16C Catalog Page More Info

Overview

Details for 16C-3

Dwyer Instruments 16C-3 Temperature Controller: Precision Temperature Management The Dwyer Instruments 16C-3 Temperature Controller is a robust and reliable solution for precise temperature control in industrial and commercial applications. Its advanced microprocessor technology ensures accurate and stable temperature regulation within a wide range of environments. Key Features: Temperature Range: -100 to 600Â°F (-73 to 316Â°C) Accuracy: Â±2% of full scale Control Output: Relay (SPDT) Input: Thermocouple or RTD Mounting: DIN rail or panel mount Benefits: Enhanced Temperature Stability: Maintains precise temperature levels to improve process efficiency and reduce downtime. Wide Applications: Suitable for a variety of temperature control needs in industries such as HVAC, manufacturing, and food processing. Durable Construction: Designed to withstand harsh industrial environments, ensuring long-lasting performance. Applications: * Temperature control of ovens, furnaces, and kilns * HVAC system temperature regulation * Temperature monitoring and control in industrial processes * Food temperature control for food safety and quality Shop now at our HVAC supply store for the best prices and fast shipping on the Dwyer Instruments 16C-3 Temperature Controller. Elevate your temperature control operations with precision and reliability!

Series 16C 1/16 DIN Temperature Controller

PID Control, Auto-Tuning, Dual Display, RS-485 Communication

The compact Series 16C Temperature Controller offers accurate temperature measurement and control in a 1/16 DIN package. Designed for direct or reverse acting (cooling or heating) control, the Series 16C can be programmed for simple ON/OFF or more complex PID control functions. PID control is supported with manual or auto-tuning. Select relay, voltage or current output for control methods.

The Series 16C accepts a variety of thermocouple and RTD inputs. Process value and setpoint value are displayed simultaneously on the large dual LED. Auto-tuning, engineering units (°F or °C), and alarm status is also indicated on the faceplate. Two alarm outputs are included on the unit with 12 preprogrammed alarm functions.

Product Applications

Oven, boiler, or chiller control
Hot plates/melt pots
Food service equipment
Environmental chambers
Packaging equipment

Universal input accepts RTD or thermocouple sensors
On/Off, PID, or manual output control
RS-485 standard on all models

Specifications

Series: 16C 1/16 DIN Temperature Controller
Category/Type: Process Control
Type: Process Controllers
Series: 16C 1/16 DIN Temperature Controller
Inputs: Thermocouple & RTD (see Catalog page).
Display: Two 4-digit; 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
Accuracy: ±0.25% span; ±1 least significant digit.
Supply Voltage: 100 to 240 VAC; 50/60 Hz.
Power Consumption: 5 VA max.
Operating Temperature: 32 to 122°F (0 to 50°C).
Memory Backup: Nonvolatile memory.
Control Output Ratings: Relay: SPST; 5 A @ 250 VAC resistive; Voltage Pulse: 14 V; 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Communication: RS-485 Modbus® ASCII communication protocol.
Weight: 4 oz (114 g).
Agency Approvals: CE; RoHS; cUL; UL.
Front Panel Rating: IP56.
