16C-2 | 1/16 DIN temperature controller | voltage pulse output. | Dwyer Instruments

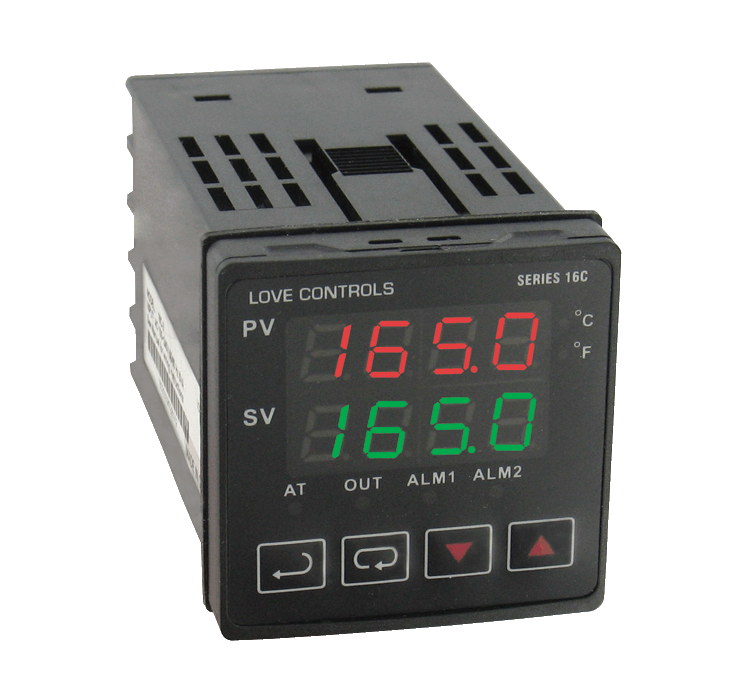

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 16C-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 16C-2 Documents

16C Quick Start Snubber Application Note 16C Instruction Manual Series 16C Catalog Page More Info

Overview

Details for 16C-2

16C-2 1/16 DIN Temperature Controller with Voltage Pulse The Dwyer Instruments 16C-2 is a compact and versatile temperature controller designed for precise temperature monitoring and control in industrial applications. It features a large, easy-to-read digital display that provides real-time temperature readings. This controller utilizes advanced Proportional-Integral-Derivative (PID) control algorithms to maintain accurate temperature regulation within a wide range of process parameters. It also offers a built-in voltage pulse output, making it compatible with various actuators and control devices. The 16C-2 is constructed with a rugged enclosure for durability in harsh industrial environments. Its compact design allows for easy panel mounting, saving valuable space. Key Features: * 1/16 DIN format for space-saving installation * Accurate and reliable temperature control with PID algorithms * Large digital display for easy readability * Voltage pulse output for compatibility with actuators * Rugged construction for industrial durability

Series 16C 1/16 DIN Temperature Controller

PID Control, Auto-Tuning, Dual Display, RS-485 Communication

The compact Series 16C Temperature Controller offers accurate temperature measurement and control in a 1/16 DIN package. Designed for direct or reverse acting (cooling or heating) control, the Series 16C can be programmed for simple ON/OFF or more complex PID control functions. PID control is supported with manual or auto-tuning. Select relay, voltage or current output for control methods.

The Series 16C accepts a variety of thermocouple and RTD inputs. Process value and setpoint value are displayed simultaneously on the large dual LED. Auto-tuning, engineering units (°F or °C), and alarm status is also indicated on the faceplate. Two alarm outputs are included on the unit with 12 preprogrammed alarm functions.

Product Applications

Oven, boiler, or chiller control
Hot plates/melt pots
Food service equipment
Environmental chambers
Packaging equipment

Universal input accepts RTD or thermocouple sensors
On/Off, PID, or manual output control
RS-485 standard on all models

Specifications

Series: 16C 1/16 DIN Temperature Controller
Category/Type: Process Control
Type: Process Controllers
Series: 16C 1/16 DIN Temperature Controller
Inputs: Thermocouple & RTD (see Catalog page).
Display: Two 4-digit; 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
Accuracy: ±0.25% span; ±1 least significant digit.
Supply Voltage: 100 to 240 VAC; 50/60 Hz.
Power Consumption: 5 VA max.
Operating Temperature: 32 to 122°F (0 to 50°C).
Memory Backup: Nonvolatile memory.
Control Output Ratings: Relay: SPST; 5 A @ 250 VAC resistive; Voltage Pulse: 14 V; 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Communication: RS-485 Modbus® ASCII communication protocol.
Weight: 4 oz (114 g).
Agency Approvals: CE; RoHS; cUL; UL.
Front Panel Rating: IP56.
