16A2130 | Temperature controller/process | Relay output | with alarm. | Dwyer Instruments

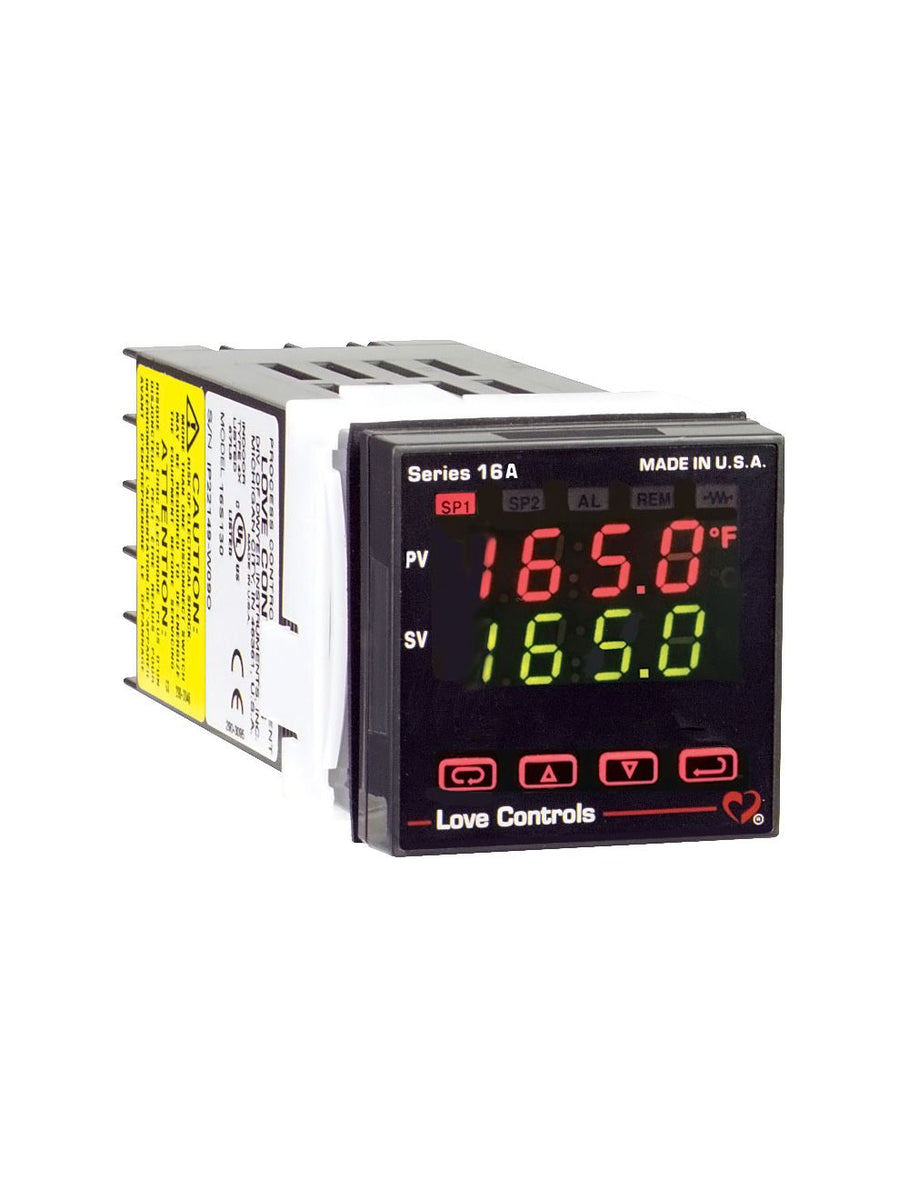

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 16A2130

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 16A2130 Documents

Snubber Application Note Series 16A Service Manual Series 1600 Service Manual Series 1600 Love Calibration Manual 16A IOM insert Series 16A Catalog Page More Info

Overview

Details for 16A2130

Dwyer Instruments NCO-16A2130 Temperature Control Relay with AlarmThe Dwyer Instruments NCO-16A2130 is a compact and reliable temperature control relay designed to provide precise temperature monitoring and control in industrial environments. This versatile device combines a precision thermistor sensor with a solid-state relay output to deliver accurate temperature measurement and reliable control. The NCO-16A2130 features an adjustable temperature range of -10Â°F to 250Â°F, allowing for a wide variety of applications. The thermistor sensor provides accurate temperature sensing, while the solid-state relay output delivers reliable control of heating or cooling equipment. The unit also includes an adjustable alarm setpoint to provide early warning of temperature deviations. Built with rugged construction, the NCO-16A2130 is designed to withstand harsh industrial environments. Its compact design allows for easy installation in space-constrained areas. The unit is also CSA and CE approved for safety and reliability. The Dwyer Instruments NCO-16A2130 Temperature Control Relay is an ideal solution for temperature monitoring and control in various industrial applications, including HVAC systems, process equipment, food and beverage processing, and more. Shop now at our HVAC supply store for the best prices and fast shipping!

Series 16A Temperature/Process Controller

1/16 DIN, Universal Input, Fuzzy Logic, Self-Tune PID

Latest microprocessor based technology affords full programmability with complete array of features in compact ultra low cost unit. 16A Series Temperature/Process Controller features universal input, Self-Tune PID, Fuzzy Logic, and dual four-digit LED displays for process and set point value. Selectable inputs can be thermocouple, RTD, current or voltage. Available outputs are solid-state relay, relay, pulsed voltage, or proportional current Programmable alarm (optional) can be reset automatically or manually. Front panel is waterproof and corrosion resistant (UL type 4X), making it ideal for sanitary applications. Replace electronics without wiring changes (via removable front panel). Self diagnostics, nonvolatile memory and selectable control modes are all designed for greater productivity. Four security levels are password protected. On-off, P, PI or PID manual tune control functions can be selected or the controller will Self-Tune automatically for best PID control.

The 16A offers the best value in Standard Features in a Process and Temperature control. In addition to the features listed above, the 16A offers Peak/Valley indication, Percent Output indication, Digital Input Filter, and a host of others.

Specifications

Series: 16A Temperature/Process Controller
Category/Type: Process Control
Type: Process Controllers
Series: 16A Temperature/Process Controller
Selectable Inputs: Thermocouple; RTD; DC Voltage; or DC Current.
Display: Two four-digit LED displays; 0.3 in (7.62 mm) high.
Display Resolution: 1 degree or 0.1 degree (sensor dependent); or 1 count.
Accuracy: ±0.25% of span ±1 least significant digit.
Supply Voltage: 100 to 240 VAC nominal; +10% -15%; 50 to 400 Hz single phase; 132 to 240 VDC +10% 20%.
Operating Temperature Range: 14 to 131°F (-10 to 55°C).
Power Consumption: 5 VA maximum.
Control Output Ratings: SSR: 2.0 A at 240 VAC resistive at 77°F (25°C). De-rates to 1.0 A at 130°F (55°C). Minimum load of 100 mA. DC SSR: 1.75 A at 32 VDC maximum. Relay: SPST; 3A at 240 VAC resistive; 1.5 A @ 240 VAC inductive. Pilot Duty rating: 250 VA; 2 A @ 120 VAC; 1 A @ 240 VAC. Alarm Relay: SPST; 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive. Pilot Duty Rating: 240 VA; 2 A @ 120 VAC or 1 A @ 240 VAC. Switched Voltage: 15 VDC at 20 mA. Proportional Current: 0 to 20 mADC; scalable; into 600 ohms maximum.
Weight: 8 oz (227g).
Agency Approvals: UL E83725; CE.
Front Panel Rating: NEMA 4X (IP66).
Serial Communications (Optional): RS-232 or RS-485 with either LoveLink™ or Modbus® RTU protocol.
