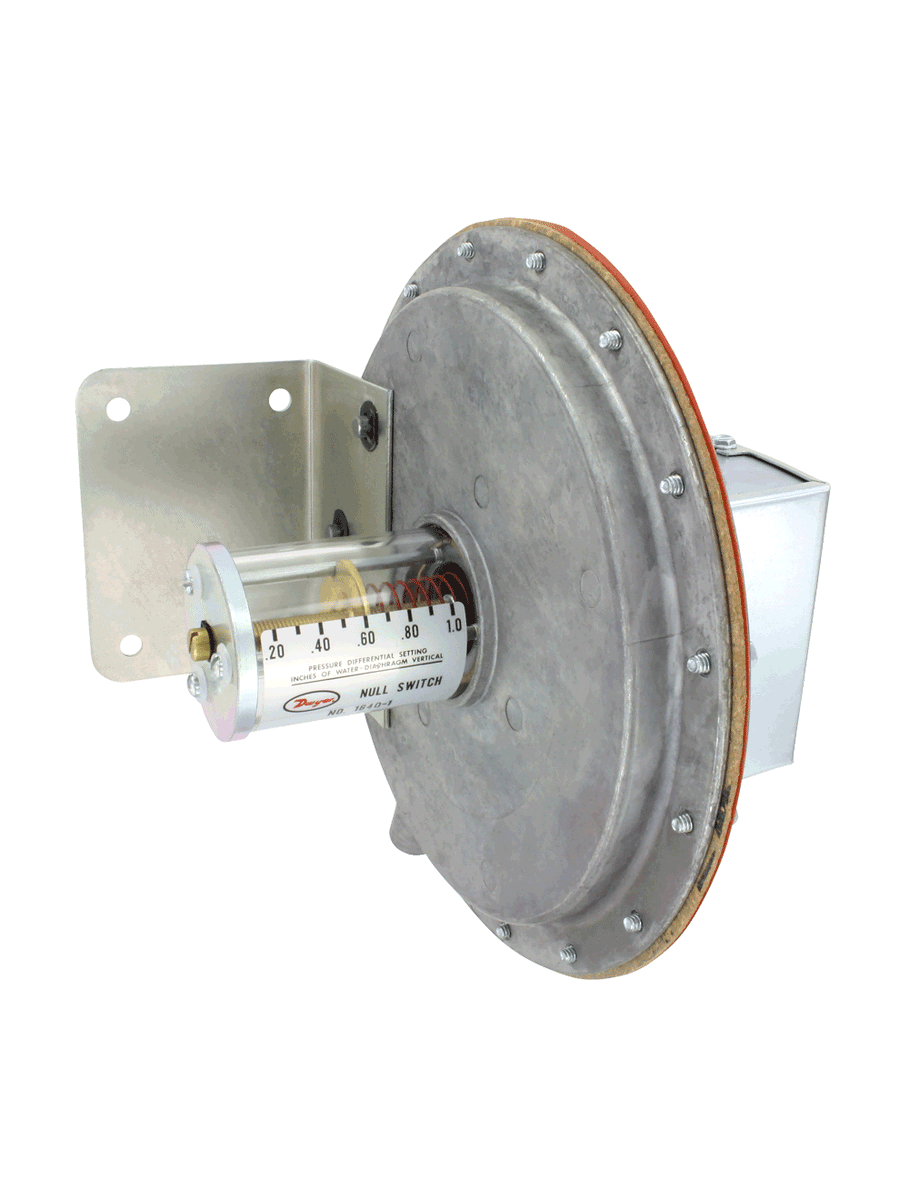

1640-10 | Floating contact switch | range 3.0-12.0" w.c. | adj. span | .04 min. set | .20 max. Set. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1640-10

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 1640-10 Documents

Instruction Manual Series 1640 Catalog Page More Info

Overview

Details for 1640-10

The Dwyer Instruments 1640-10 3-12" Floating Contact Null Sw is a critical asset for monitoring and maintaining gas and air pressure systems. Engineered to deliver accurate and reliable measurements, this device features a unique floating contact design that ensures precise indication, eliminating guesswork and false readings. The robust construction of the 1640-10 withstands harsh industrial environments, making it suitable for various applications. Its advanced design minimizes friction and wear, resulting in increased longevity. Key Features: * Floating contact design for accurate indication * Durable construction for extended lifespan * Ideal for monitoring gas and air pressure systems Applications: * Gas piping systems * Air compressors and filters * HVAC systems * Industrial manufacturing processes Trust our HVAC supply store for the best prices and fast shipping on the Dwyer Instruments 1640-10 Floating Contact Null Sw. Our commitment to quality products and customer satisfaction makes us the preferred choice for industrial engineers and maintenance professionals. Upgrade your gas and air pressure monitoring system today and experience the precision and reliability of the Dwyer Instruments 1640-10.

Series 1640 Floating Contact Null Switch for High and Low Actuation

Visual Set Point Adjustment, Adjustable Null Zone

The unique electric switch design in the Series 1640 is another Dwyer Instruments innovation. The Dwyer® Series 1640 Differential Pressure Switch resembles the Series 1630 switches. However, the Series 1640 is equipped with a single pole, double throw floating contact switch (not snap acting) so it functions as a switch.

As the diaphragm moves in response to pressure changes, it moves the floating contact to cause switching action at two preset points with no switching action between these points. The "high" circuit will be closed when rising pressure differential reaches the preset level. The "low" circuit will be closed when falling pressure differential reaches the preset level.

A typical example of usage is to position motorized dampers when static pressure in a duct system reaches a desired maximum and reposition the dampers when the static pressure falls to a pre-established minimum. By using a Pitot tube sensing element the Series 1640 switch can serve in the same way to control air velocity and maintain a constant volume of air in a supply duct.

CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE GASES.

Product Applications

Damper positioning
Duct air control

Floating “” switch supports applications requiring two set point actions such asopen and close damper control
Visible set point indicator simplifies operation and trouble shooting
Large diaphragm provides low range accuracy providing precise control

Specifications

Series: 1640 Floating Contact Null Switch for High and Low Actuation
Category/Type: Pressure
Type: Differential Pressure
Series: 1640 Floating Contact Null Switch for High and Low Actuation
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Temperature Limits: -30 to 110°F (-34.4 to 43.3°C).
Pressure Limits: 10 psig (68.95 kPa) continuous; 25 psig (172.4 kPa) surge.
Switch Type: SPDT.
Electrical Rating: Non-inductive: 2.5 A @ 110 VAC; 1.5 A @ 220 VAC; 1 A @ 24 VDC; 0.5 A @ 110 VAC; Inductive: 1 A @ 110 VAC; 0.5 A @ 220 VAC; 0.5 A @ 24 VDC. (De-rate 70-80% for very slow pressure changes.)
Electrical Connections: 3 screw type; common; normally open and normally closed.
Process Connections: 1/8" female NPT.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment: Screw type.
Weight: 4 lb 13 oz (2.18 kg).
Agency Approvals: CE.
