1626-20 | Single and dual pressure switch | range 8.0-24" w.c. | .50 min. deadband | 1.20 max. deadband | 5.0 adj. diff. between set points. | Dwyer Instruments

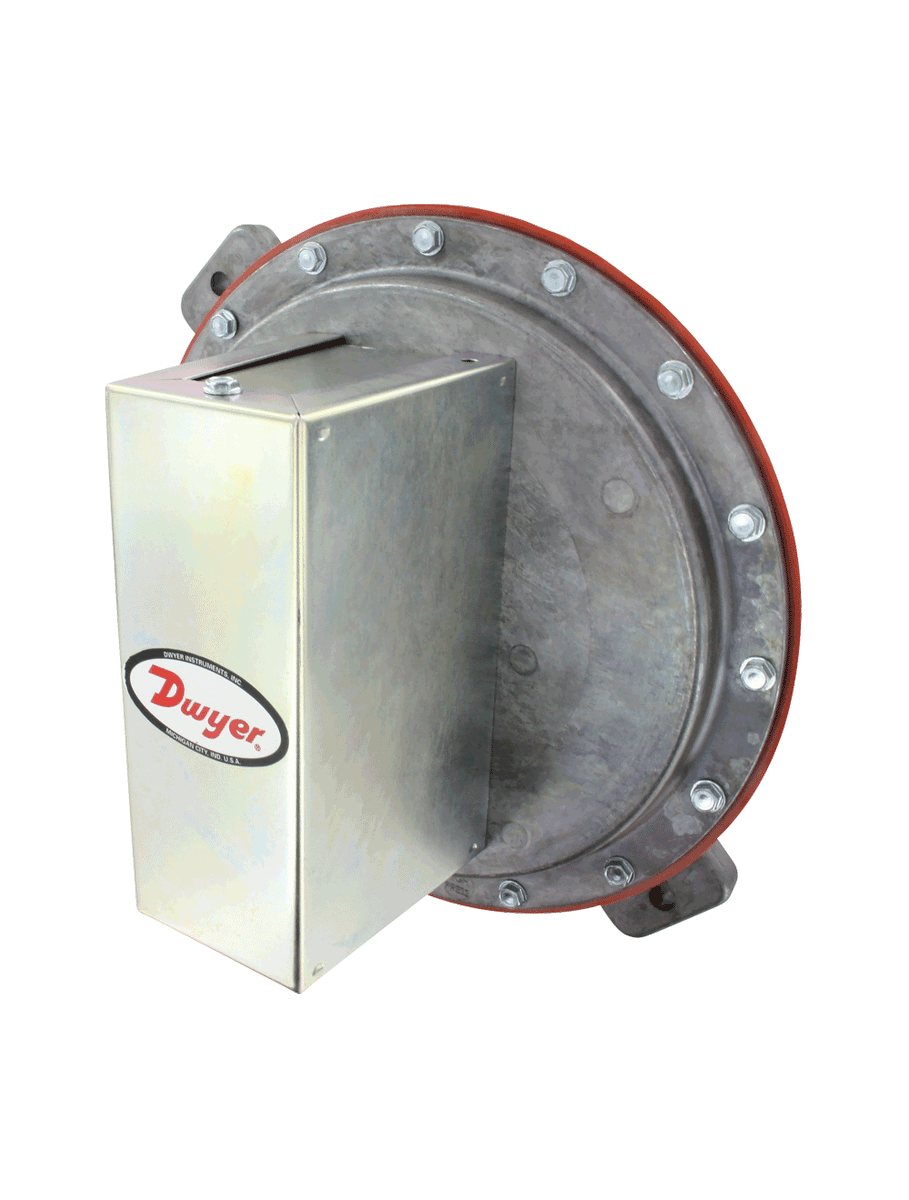

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1626-20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 1626-20 Documents

Instruction Manual Series 1620 Catalog Page More Info

Overview

Details for 1626-20

Dwyer Instruments Differential Pressure Switch (1626-20) Dwyer Instruments' 1626-20 is a reliable differential pressure switch designed for industrial applications. It offers precise pressure sensing and switching capabilities within the range of 8-24" wc. The 1626-20 features a durable construction with a compact design, ensuring longevity and ease of installation. Its adjustable set point allows for customized pressure thresholds, enabling accurate control and monitoring. Key Features: * Adjustable set point for pressure range of 8-24" wc * Durable construction for industrial environments * Compact design for ease of installation * Reliable switching performance Applications: * HVAC systems * Industrial automation * Process control * Airflow monitoring and control Upgrade your industrial operations with the dependable Dwyer Instruments 1626-20 Differential Pressure Switch. Our HVAC supply store provides unbeatable prices and fast shipping, ensuring you get the products you need, when you need them! Shop now and experience the difference.

Series 1620 Single and Dual Pressure Switch

High Reliability, Repetitive Accuracy within ±1%

On the Series 1620 Single and Dual Pressure Switch, our old faithful switch design is still best where highest precision combined with diaphragm sealed leak proof construction and mounting simplicity are required. Model 1626 and 1627 differential pressure switches are identical in design and construction except that Model 1626 has a single electric switch and Model 1627 has dual electric switches. Model 1627 can therefore provide dual control when required. It can be set to open or close two independent electrical circuits, each preset for its own actuation pressure. Both units have diaphragm sealed motion take outs providing maximum protection against leakage.

CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE GASES.

Product Applications

Damper positioning
Duct air control

Single or dual action switches support consistent designs with similar models, but with the ability to match specific application needs
Sealed diaphragm provides leak-proof construction for high accuracy and precision control

Specifications

Series: 1620 Single and Dual Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: 1620 Single and Dual Pressure Switch
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Temperature Limits: -30 to 130°F (-34.4 to 54.4°C).
Pressure Limits: Max. 50 in. w.c. (12.44 kPa) continuous; 2 psig (13.79 kPa) surge.
Switch Type: 1626: SPDT; 1627: (2) SPDT.
Repeatability: ±1%.
Electrical Rating: 15 A @ 120 to 480 VAC; 60 Hz. Resistive; 1/8 HP @ 125 VAC; 1/4 HP @ 250 VAC; 60 Hz.
Electrical Connections: 3 screw type; common; normally open and normally closed.
Process Connections: 1/8" female NPT.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment: Screw adjustment.
Weight: Model 1626: 3 lb 9.8 oz (1.64 kg); Model 1627: 3 lb 11.8 oz (1.69 kg).
Agency Approvals: CE.
