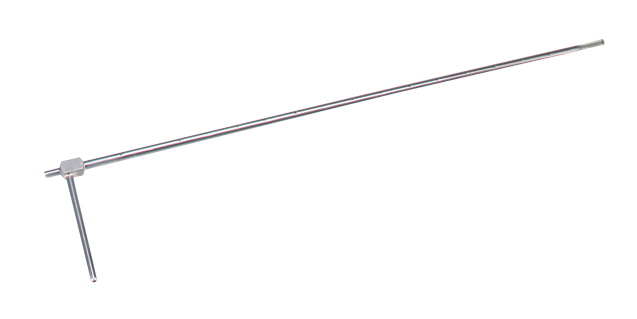

160F-60 | Straight stainless steel pitot tube | 60" | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 160F-60

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 160F-60 Documents

Instruction Manual Series 160F Catalog Page More Info

Overview

Details for 160F-60

STRAIGHT SS PILOT TUBE, 60" Dwyer Instruments 160F-60 straight SS pilot tube is a precision-engineered component designed for accurate and reliable measurement of pressure, flow, and other process variables. Crafted from high-quality stainless steel, it offers excellent durability and corrosion resistance, ensuring long-lasting performance in demanding industrial environments. This pilot tube features a straight design with a 60-inch length, providing ample reach for various applications. Its precision-machined bore ensures accurate pressure readings, while the robust construction withstands harsh operating conditions. The pilot tube is compatible with a wide range of Dwyer Instruments pressure transmitters and gauges, offering versatility and ease of integration into existing systems. Whether you're monitoring pressure in a production line, measuring flow rates in a pipeline, or conducting other critical process measurements, the Dwyer Instruments 160F-60 straight SS pilot tube delivers reliable and accurate performance. Its high-quality construction, precision design, and compatibility with Dwyer Instruments products make it an indispensable tool for industrial engineers and maintenance professionals. Upgrade your measurement capabilities today! Shop our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

Series 160F Straight Stainless Steel Pitot Tubes

Straight Design, Accurate Positioning

The Series 160F Straight Stainless Steel Pitot Tube is constructed from corrosionresistant stainless steel with permanently etched insertion depth graduations for alifetime of service. The static pressure port is parallel to the sensing tube to allowquick, easy alignment of the tube with air flow. The straight design allows for easyinsertion into ducts through grills and pressure taps, as well as aids in positioning inhard to reach locations where a hook style Pitot tube may not allow access.

Note: Special shipping and handling charges will apply to pitot tube lengths over 36" for International orders and 72" for Domestic orders.

Product Applications

Monitor or control air velocity or air flow when combined with differential pressure gage, switch, or transmitter where hook style Pitot tubes don’t allow access

Straight design allows for easy insertion into ducts
Permanent stamped insertion depth graduations facilitate accurate positioning
Alignment indicator helps keep tip parallel to flow

Specifications

Series: 160F Straight Stainless Steel Pitot Tubes
Category/Type: Air Quality
Type: Pitot Tubes
Series: 160F Straight Stainless Steel Pitot Tubes
Material: 304 SS.
Accuracy: ±2% FS; 0 to 9000 FPM (45 M/s).
K-Factor: 0.81.
Max. Temperature: 1500°F (815°C).
Process Connections: 1/4" OD.
Weight: 4.3 oz (122 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
