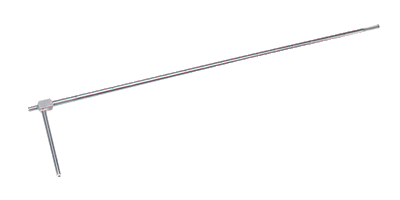

160F-48 | Straight stainless steel pitot tube | 48" | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 160F-48

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 160F-48 Documents

Instruction Manual Series 160F Catalog Page More Info

Overview

Details for 160F-48

Precise Temperature Measurement: Dwyer Instruments 160F-48 Straight SS Pitot Tube The Dwyer Instruments 160F-48 Straight SS Pitot Tube is designed for accurate temperature measurement in various industrial applications. Constructed from durable stainless steel, this rugged probe withstands harsh environments for reliable performance. Key Features: Straight design for simplified insertion into ducts or pipes 48" length for extended reach in deep cavities Stainless steel construction for corrosion resistance and longevity Versatile and easy to use Benefits: Provides precise temperature measurements in industrial settings Enables quick and accurate readings in challenging environments Durable construction ensures long-lasting performance Applications: Ideal for measuring air or gas temperatures in ventilation ducts Suitable for use in HVAC systems, process control, and environmental monitoring Perfect for industrial maintenance and troubleshooting Trust Dwyer Instruments 160F-48 Straight SS Pitot Tube for precise and reliable temperature measurement solutions. Shop our HVAC supply store today for the best prices and fast shipping!

Series 160F Straight Stainless Steel Pitot Tubes

Straight Design, Accurate Positioning

The Series 160F Straight Stainless Steel Pitot Tube is constructed from corrosionresistant stainless steel with permanently etched insertion depth graduations for alifetime of service. The static pressure port is parallel to the sensing tube to allowquick, easy alignment of the tube with air flow. The straight design allows for easyinsertion into ducts through grills and pressure taps, as well as aids in positioning inhard to reach locations where a hook style Pitot tube may not allow access.

Note: Special shipping and handling charges will apply to pitot tube lengths over 36" for International orders and 72" for Domestic orders.

Product Applications

Monitor or control air velocity or air flow when combined with differential pressure gage, switch, or transmitter where hook style Pitot tubes don’t allow access

Straight design allows for easy insertion into ducts
Permanent stamped insertion depth graduations facilitate accurate positioning
Alignment indicator helps keep tip parallel to flow

Specifications

Series: 160F Straight Stainless Steel Pitot Tubes
Category/Type: Air Quality
Type: Pitot Tubes
Series: 160F Straight Stainless Steel Pitot Tubes
Material: 304 SS.
Accuracy: ±2% FS; 0 to 9000 FPM (45 M/s).
K-Factor: 0.81.
Max. Temperature: 1500°F (815°C).
Process Connections: 1/4" OD.
Weight: 4.3 oz (122 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
