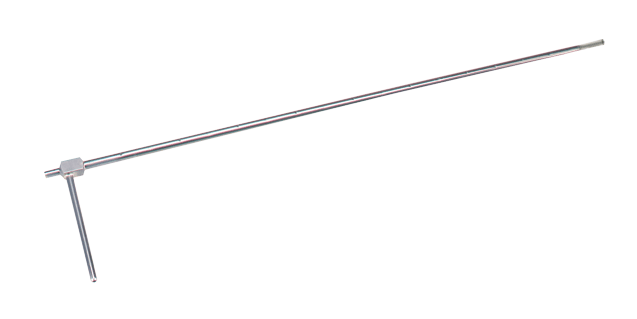

160F-36 | Straight stainless steel pitot tube | 36" | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 160F-36

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 160F-36 Documents

Instruction Manual Series 160F Catalog Page More Info

Overview

Details for 160F-36

The Dwyer Instruments 160F-36 Straight SS Pitot Tube is designed for use in measuring air velocity and static pressure. Constructed from durable stainless steel, this pitot tube withstands harsh industrial environments and provides accurate readings. Key Features: * Straight design for use in straight ducts * 36-inch length for extended reach * Precision-machined for accurate measurements Benefits: * Accurate air velocity and static pressure measurements * Durable construction for long-lasting performance * Suitable for various industrial applications Applications: * Air velocity and static pressure measurement in HVAC systems * Industrial process monitoring and control * Cleanroom applications Order your Dwyer Instruments 160F-36 Straight SS Pitot Tube today from our HVAC supply store, your trusted source for industrial supplies. We offer the best prices and fast shipping on all your product needs!

Series 160F Straight Stainless Steel Pitot Tubes

Straight Design, Accurate Positioning

The Series 160F Straight Stainless Steel Pitot Tube is constructed from corrosionresistant stainless steel with permanently etched insertion depth graduations for alifetime of service. The static pressure port is parallel to the sensing tube to allowquick, easy alignment of the tube with air flow. The straight design allows for easyinsertion into ducts through grills and pressure taps, as well as aids in positioning inhard to reach locations where a hook style Pitot tube may not allow access.

Note: Special shipping and handling charges will apply to pitot tube lengths over 36" for International orders and 72" for Domestic orders.

Product Applications

Monitor or control air velocity or air flow when combined with differential pressure gage, switch, or transmitter where hook style Pitot tubes don’t allow access

Straight design allows for easy insertion into ducts
Permanent stamped insertion depth graduations facilitate accurate positioning
Alignment indicator helps keep tip parallel to flow

Specifications

Series: 160F Straight Stainless Steel Pitot Tubes
Category/Type: Air Quality
Type: Pitot Tubes
Series: 160F Straight Stainless Steel Pitot Tubes
Material: 304 SS.
Accuracy: ±2% FS; 0 to 9000 FPM (45 M/s).
K-Factor: 0.81.
Max. Temperature: 1500°F (815°C).
Process Connections: 1/4" OD.
Weight: 4.3 oz (122 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
