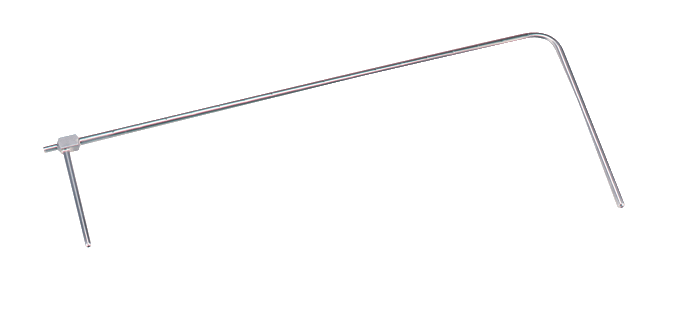

160-18 | Stainless steel Pitot tube | 5/16" dia. | 18-5/8" insertion length. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 160-18

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 160-18 Documents

Instruction Manual Series 160 Catalog Page More Info

Overview

Details for 160-18

18" SS Pitot Tube The Dwyer Instruments 160-18 is an 18-inch Pitot tube for measuring air velocity and static pressure in industrial and commercial applications. Constructed from durable stainless steel, it provides accurate readings in challenging environments. Key Features: * Material: Stainless Steel * Operating Temperature: -40Â°F to 250Â°F (-40Â°C to 121Â°C) * Pressure Range: 0 to 100 inches of water column * Velocity Range: 600 to 10,000 feet per minute * Measurements: Dynamic and static pressure Benefits: * Provides precise flow measurements for optimization * Robust construction for reliable performance in harsh conditions * Easy installation and maintenance Applications: * HVAC systems testing and balancing * Airflow measurements in industrial processes * Ventilation and environmental monitoring Call our HVAC supply store today to order your Dwyer Instruments 160-18 Pitot Tube and experience the precision and durability it offers for your airflow measurement needs!

Series 160 Stainless Steel Pitot Tube

ASME Design Meets AMCA and ASHRAE Codes

The Series 160 Stainless Steel Pitot Tube is constructed from corrosion resistant stainless steel with permanently etched insertion depth graduations for a lifetime of service. The static pressure port is parallel to the sensing tube to allow quick, easy alignment of the tube with air flow. A universal model fits the user supplied 3/4" schedule 40 pipe in any length.

Note: Special shipping and handling charges will apply to pitot tube lengths over 36" for International orders and 72" for Domestic orders.

Download the Air Velocity Calculator App for Android® devices.

Product Applications

Monitor or control air velocity or air flow when combined with differential pressure gage, switch or transmitter

Low sensitivity to misalignment up to 15 degrees
No calibration needed due to ASHRAE tip design
Silver soldered connections for leak-proof operation
5/16" models rated to 1500°F (815.5°C)
