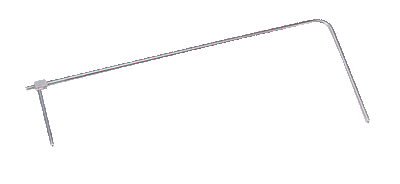

160-12 | Stainless steel Pitot tube | 5/16" dia. | 12-5/8" insertion length. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 160-12

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 160-12 Documents

Instruction Manual Series 160 Catalog Page More Info

Overview

Details for 160-12

Dwyer Instruments NCO Series 5/16" SS Pitot Tube with 12" Insert (SKU: 160-12) Dwyer Instruments' NCO-160-12 is a precision-engineered pitot tube designed for measuring air or gas velocity. It features a 5/16" diameter stainless steel construction for corrosion resistance and durability. The 12" insert provides extended reach and accuracy in measuring velocity. Key Benefits: * High accuracy air or gas velocity measurement * Robust stainless steel construction for harsh environments * 12" insert for increased reach and accuracy * Easy installation and maintenance Technical Specifications: * Material: Stainless steel * Diameter: 5/16" * Insert Length: 12" * Velocity Range: 0-16000 FPM Applications: * HVAC ductwork * Commercial and industrial ventilation systems * Air flow monitoring and testing * Environmental monitoring Shop our HVAC supply store for the Best Prices and Fast Shipping At our HVAC supply store, we offer the most competitive prices on the NCO-160-12 and all of your industrial supply needs. Our extensive inventory and fast shipping ensure that you have the products you need when and where you need them. Contact us today to place your order or learn more about our complete line of Dwyer Instruments products.

Series 160 Stainless Steel Pitot Tube

ASME Design Meets AMCA and ASHRAE Codes

The Series 160 Stainless Steel Pitot Tube is constructed from corrosion resistant stainless steel with permanently etched insertion depth graduations for a lifetime of service. The static pressure port is parallel to the sensing tube to allow quick, easy alignment of the tube with air flow. A universal model fits the user supplied 3/4" schedule 40 pipe in any length.

Note: Special shipping and handling charges will apply to pitot tube lengths over 36" for International orders and 72" for Domestic orders.

Download the Air Velocity Calculator App for Android® devices.

Product Applications

Monitor or control air velocity or air flow when combined with differential pressure gage, switch or transmitter

Low sensitivity to misalignment up to 15 degrees
No calibration needed due to ASHRAE tip design
Silver soldered connections for leak-proof operation
5/16" models rated to 1500°F (815.5°C)
