15111 | Temperature controller | thermocouple input | SSR output | with alarm. | Dwyer Instruments

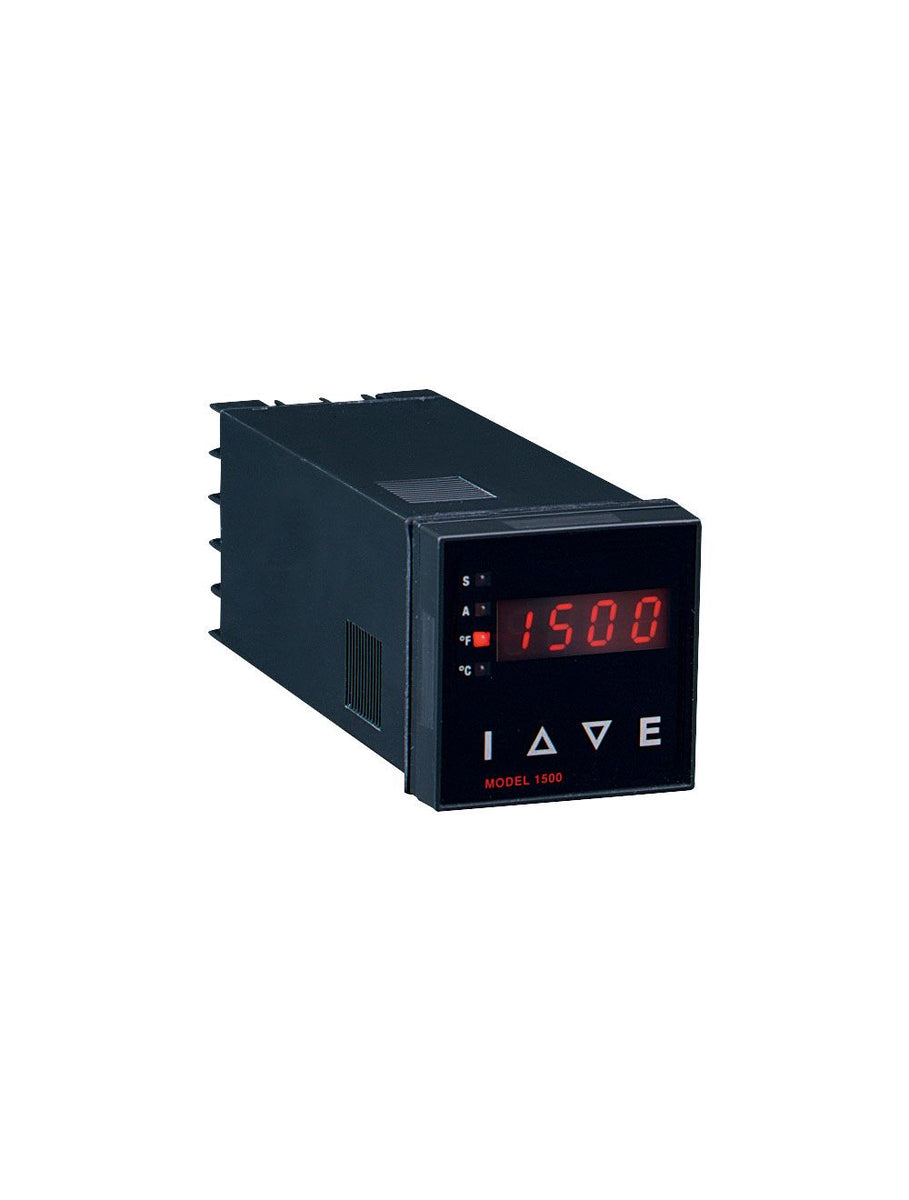

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 15111

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 15111 Documents

Service Manual Series 1500 Catalog Page More Info

Overview

Details for 15111

TEMP CONTROL W/ ALARM The NCO-15111 Dwyer Instruments Temperature Control with Alarm is an essential tool for maintaining precise temperature levels in industrial settings. This compact and reliable device features an adjustable temperature range and a built-in alarm, making it perfect for critical temperature monitoring and control applications. The NCO-15111 is designed for ease of use and accuracy. Its intuitive user interface allows for quick and precise temperature settings, and the built-in alarm ensures timely alerts to prevent temperature deviations. The alarm threshold can be set according to your specific requirements, providing maximum flexibility and reliability. Constructed from high-quality materials, the NCO-15111 is built to withstand the rigors of industrial environments. Its durable construction and advanced circuitry ensure long-lasting performance and reliable operation, even under demanding conditions. Applications: Temperature monitoring and control in manufacturing processes HVAC systems maintenance Laboratory and research environments Industrial equipment temperature regulation Protect your equipment and processes from temperature fluctuations with the NCO-15111 Dwyer Instruments Temperature Control with Alarm. Our HVAC supply store offers competitive pricing and fast shipping, making it easy to equip your facility with the tools it needs. Trust Our HVAC supply store for your industrial supply needs and experience the difference!

Series 1500 Temperature Controller

1/16 DIN, Microprocessor Based, Self-Tune PID

The Series 1500 Temperature Controller is a reliable, accurate and fully programmable temperature control or alarm in an economical 1/16 DIN case. Microprocessor based, all control functions are easily programmed from the waterproof, corrosion resistant front panel. Models are available that accept field selectable J, K, T, E or N type thermocouples or RTD 100Ω DIN (.00385 ohms/ohm/°C) inputs and provide SSR, Relay or 5 VDC Logic outputs. All models are programmable for on-off, P, PI, manual PID or automatic Self-Tune PID control. Like the control output, optional alarm is field configurable direct acting (cooling) or reverse acting (heating) and is easily adjusted for either automatic or manual reset to provide independent high or low system protection. Four security levels are password protected.

Specifications

Series: 1500 Temperature Controller
Category/Type: Process Control
Type: Process Controllers
Series: 1500 Temperature Controller
Inputs: Thermocouple (J type stocked); field selectable K; T; E; or N type; RTD (100Ω DIN).
Display: 4 digit; 7 segment 0.3" high LED display; Set Point and Alarm status LED indicators; °F or °C LED indicators.
Accuracy: ±0.25% of span ±1 least significant digit.
Supply Voltage: 100 to 240 VAC; 50 to 400 Hz. single phase; 132 to 240 VDC (nom.) +10% - 20%. 5 VA maximum power consumption.
Temperature Range: Operating 14 to 131°F (-10 to 55°C); storage -40 to176°F (-40 to 80°C).
Output Ratings: SSR: 3.5A @ 240 VAC max. @ 77° (25°C) typical. Relay (SPST): 3A res.; 1.5A ind. @ 250 VAC; Pilot Duty = 250 VA; 2A @ 125 VAC or 1A @ 250 VAC.
Alarm Rating (optional): Relay (SPST): 3A res.; 1.5A ind. @ 250 VAC.
Isolation: Relay and SSR outputs are isolated.
Sensor Break Protection: De-energizes control output.
Front Panel Rating: NEMA 4X (IP65).
Weight: 8 oz (227 g).
Agency Approvals: cUL; UL.
