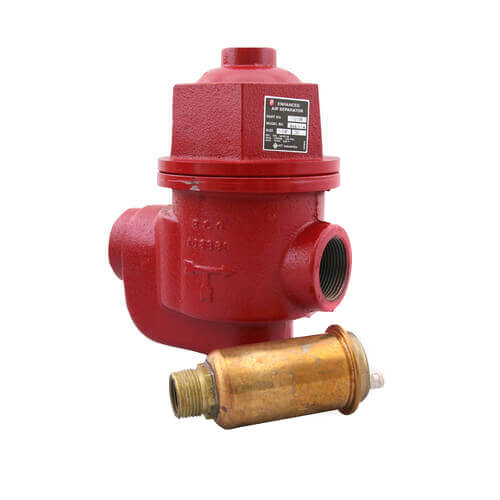

112106 | 1-1/4" NPT Enhanced Air Separator | Xylem-Bell & Gossett

EAS-1 1/4" ENHANCED AIR SEP. The Xylem-Bell & Gossett EAS-1 1/4" ENHANCED AIR SEP. is a centrifugal air separator designed to remove air from hydronic systems. It features a unique patented design that provides superior air separation efficiency and low pressure drop. The EAS-1 is made of durable materials and is easy to install and maintain. Features and Benefits: - Patented design provides superior air separation efficiency - Low pressure drop - Durable construction - Easy to install and maintain Applications: - Hydronic systems - Boilers - Chillers - Heat pumps - Condenser water systems Contact our HVAC supply store today for the best prices and fast shipping on the Xylem-Bell & Gossett EAS-1 1/4" ENHANCED AIR SEP. and other industrial products. See how Enhanced Air Separator works: as system fluid enters through the inlet, (either straight or angle) the diffuser distributes flow evenly across the stainless steel, wire brush-like medium. Air bubbles, even micro air bubbles, stick to the brush filaments. Trapped air rises above the diffuser through a baffle where the air is then released through an opening at the top. De-aerated water then goes back into the system.
EAS is very easy and convenient to install:
-Requires no minimum pipe run.
-Straight or angle pattern installation capability.
-Usable for systems with either steel compression or diaphragm expansion tanks.
-Removable and replaceable +" high capacity vent.
EAS is built to last:
-Rugged two-piece cast iron body and cap construction.
-Internal parts are all stainless steel.
-Vent has a brass body and non-ferrous internals.
Body Type: Cast Iron
Connection Type: Threaded
