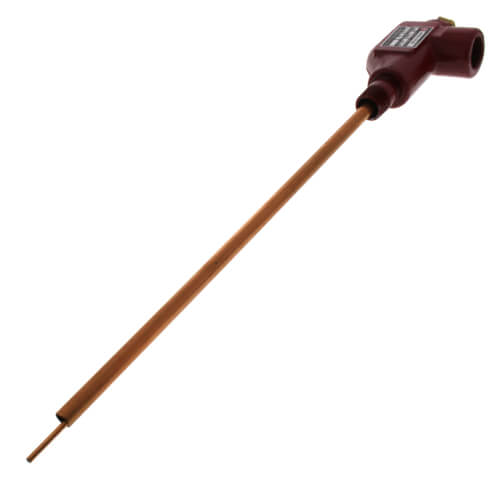

112026 | 1/2" ATF-20 Airtrol Fitting (For 20"-22" Compression Tank Dia) | Xylem-Bell & Gossett

AIRTROL FITTING FOR 20" TANK, ATF-20 [sku: 112026] from Xylem-Bell & Gossett is designed to fit 20-inch tanks. This airtrol fitting is a reliable component for industrial and commercial applications. It is made from durable materials to withstand demanding working conditions. TANK FITTINGS DESCRIPTION Airtrol Tank Fittings help establish the proper initial liquid level in the compression tank when filling the hydronic system. They help maintain proper system pressurization by directing released air to the compression tank during system operation and permit cooler liquid flow to the boiler during the off cycle as system liquid cools. Airtrol Tank Fittings must be used with the appropriately sized In-Line Airtrol or Rolairtrol air separator. Tank Connection is 1/2" Male, Boiler Connection is 3/4" Female.
CONSTRUCTION
Body Type: Cast Iron
Connection Type: Threaded
Tubes: Copper and Copper Plated
Vent Tube Fitting: Brass
Ball Check: ATFL (only), Stainless Steel
PERFORMANCE CHARACTERISTICS
All Tank Fittings Max Pressure :175 psig (1206 kPa)
ATFL Drain-O-Tank Valve Max Pressure: 125 psig (862 kPa)
Max Operating Temperature - All Fittings: 250+F (121+C)
