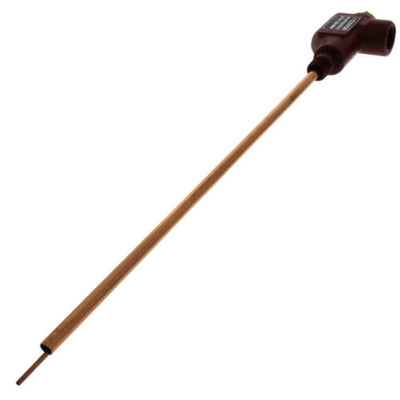

112013 | 1/2" ATF-24 Airtrol Fitting (For 24" Compression Tank Dia) | Xylem-Bell & Gossett

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 112013

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Xylem-Bell & Gossett 112013 Documents

Datasheet Catalog PartS & Accessories

Overview

Details for 112013

Airtrol Fit. 24" tank, ATF-24. NCO replacement part number 112013. TANK FITTINGS DESCRIPTION Airtrol Tank Fittings help establish the proper initial liquid level in the compression tank when filling the hydronic system. They help maintain proper system pressurization by directing released air to the compression tank during system operation and permit cooler liquid flow to the boiler during the off cycle as system liquid cools. Airtrol Tank Fittings must be used with the appropriately sized In-Line Airtrol or Rolairtrol air separator. Tank Connection is 1/2" Male, Boiler Connection is 3/4" Female.
CONSTRUCTION
Body Type: Cast Iron
Connection Type: Threaded
Tubes: Copper and Copper Plated
Vent Tube Fitting: Brass
Ball Check: ATFL (only), Stainless Steel
PERFORMANCE CHARACTERISTICS
All Tank Fittings Max Pressure :175 psig (1206 kPa)
ATFL Drain-O-Tank Valve Max Pressure: 125 psig (862 kPa)
Max Operating Temperature - All Fittings: 250+F (121+C)
