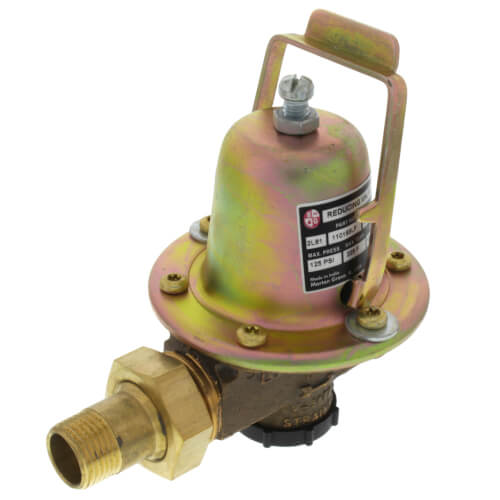

110193LF | FB-38TU 1/2" Pressure Reducing Valve (MNPT Union & Sweat Union Combination Connection, LF) | Xylem-Bell & Gossett

FB38TU, 1/2" REDUCE VLV, 12# The FB38TU is a 1/2" reducing valve designed to regulate water pressure in commercial and industrial applications. Manufactured by Xylem-Bell & Gossett, this valve is known for its reliability and durability. Constructed from high-quality materials, the FB38TU features a bronze body, stainless steel trim, and a Buna-N diaphragm for extended service life. With a pressure range of up to 125 psi and a temperature range of 32°F to 180°F, this valve is suitable for various applications. The FB38TU is designed with a spring-loaded diaphragm that automatically adjusts to changes in flow and pressure conditions, ensuring precise pressure regulation. It offers a maximum flow rate of 20 GPM and can be installed in horizontal or vertical pipelines. Applications for the FB38TU include pressure reduction for fixtures, equipment, and irrigation systems. It is commonly used in commercial buildings, factories, and warehouses to regulate water pressure and protect downstream components. Shop our HVAC supply store for the best prices and fast shipping on the FB38TU Reducing Valve! Please note: Tail piece for union models is combination - 1/2" copper sweat and1/2" male NPT.

Operating Data

• Maximum operating temperature 225 degrees F (107 degrees C).
• Maximum operating pressure 125 PSIG (862 kPa)

Features

• Reducing valves fill the system to a preset pressure for optimum performance. Combination Dual Unit Valves include pressure reducing valve and relief valve.
• Fast fill feature reduces start-up time and labor.
• Low inlet pressure check valve help prevent loss of system pressure if the supply water drops below system pressure.
• Union connection available with 1/2" male NPT thread and 1/2" female sweat tail-piece for fast, flexible system connection.
• Brass body construction is highly resistant to corrosion-ideal for water systems.

Applications

• For residential applications.
