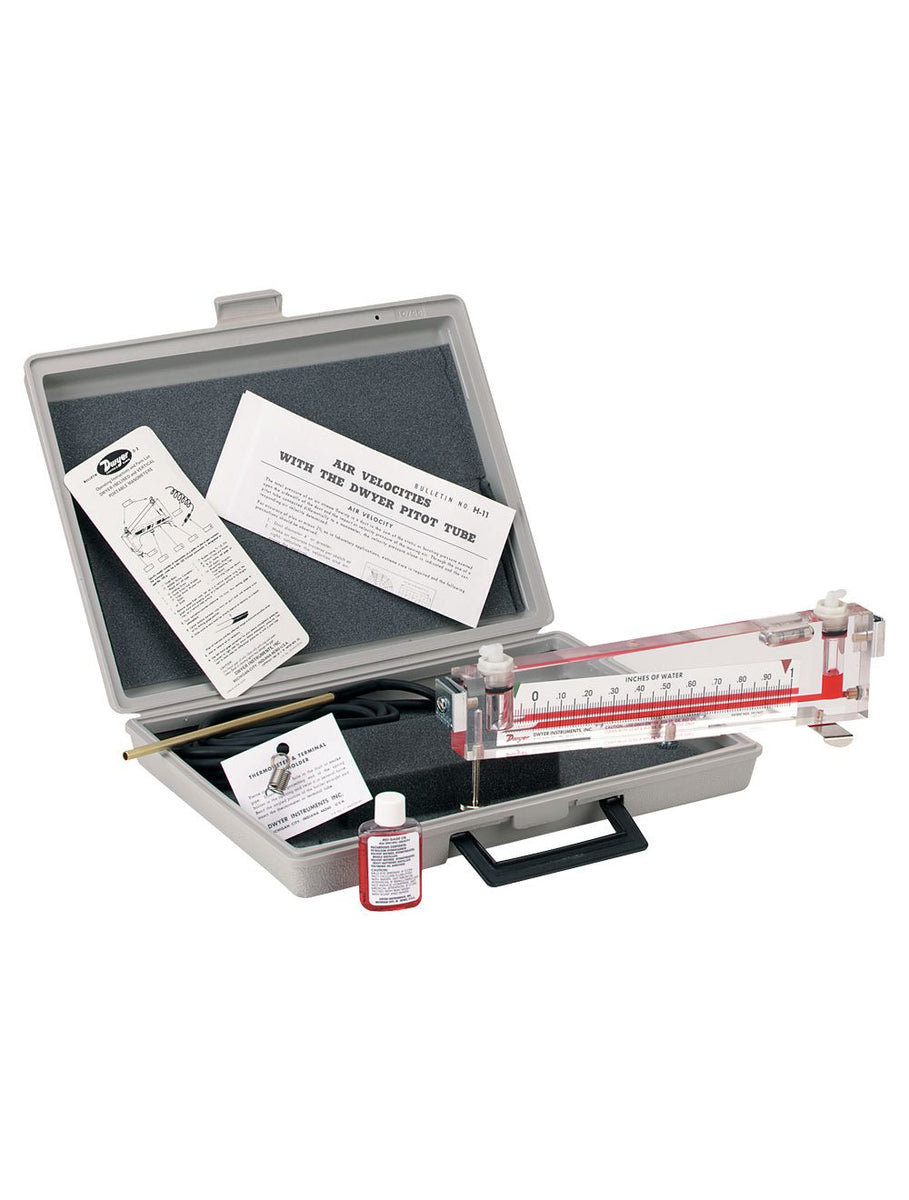

109 | Solid plastic portable gage | range .20-0-3.0" w.c. | .02 minor div. | 8-3/4" scale | plastic carrying case. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 109

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 109 Documents

Instruction Manual (100)Instruction Manual (170/171/172)Series 100 Catalog Page A-396A Red Gage Fluid - English Red Gage Fluid - French Red Gage Fluid - Spanish Red Gage Fluid - German More Info

Overview

Details for 109

Dwyer Instruments NCO-109 Inclined Manometer The Dwyer Instruments NCO-109 Inclined Manometer is a specialized industrial tool designed to measure low-pressure ranges with high precision. Key Features: â€¢ Inclined design provides enhanced readability and accuracy â€¢ Measuring range: 0.20" to 0.3" water column â€¢ Versatile application in various industries, including HVAC, plumbing, and process control â€¢ Durable construction ensures reliable performance in demanding environments Benefits: â€¢ Accurate pressure measurement within a specific range â€¢ Inclined design eliminates parallax errors and improves readability â€¢ Ideal for both positive and negative pressure measurements â€¢ Compact size allows for easy installation and portability Applications: â€¢ Monitoring gas and air pressures in pipelines and ducts â€¢ Measuring pressure drops across filters and other components â€¢ Verifying proper operation of pressure-sensitive equipment â€¢ Troubleshooting and diagnosing pressure-related issues Order your Dwyer Instruments NCO-109 Inclined Manometer today and experience precise pressure measurement! Our HVAC supply store offers competitive prices and fast shipping to ensure your satisfaction.

Series 100 Durablock® Solid Plastic Portable Gage

Suitable for Total Pressures Up to 100 psig, Temperatures Up to 150°F, Accuracy ±2% of Full Scale (1% on Model 115 Only)

Dwyer® Series 100 Durablock® Solid Plastic Portable Manometers are precision instruments in inclined and vertical (well-type) styles for the measurement of static pressure, vacuum or differential pressure. To assure the accuracy required in instruments of this type, all machining of bores and wells is to the highest standards of precision backed by Dwyer's years of experience in the fabrication of acrylic instruments.

NIST CALIBRATION available in Product Configurator.

Click here, if you require a Safety Data Sheet for the Red Gage Fluid.

1" Thick Acrylic Plastic Body is a solid block, virtually unbreakable, stable and free of the danger of distortion.
Drilled bore Accurate to ±.0002" are permanently free of bends or crooks, will not require recalibration because of distortion.
Selected Gage Oil with high wetability characteristics forms a consistent, well shaped meniscus for easy readability.
Adjustable Reflective Chrome Finish Scales with thumbscrew locking for easy zeroing.
Parallax-Free Reading for maximum accuracy and consistency is achieved by simply aligning the meniscus with its image reflected in the polished aluminum scale.
Screw Type Leveling Adjustment for inclined style gages provides rapid and accurate leveling with reference to integral sensitive ground glass bubble level.
Furnished Complete with accessories and plastic carrying case.
