102-AV | Air velocity gage kit | .20-0-2.0" w.c. | 400-5500 FPM velocity | 8-1/4" scale | Model 166-12 (12") Pitot tube. | Dwyer Instruments

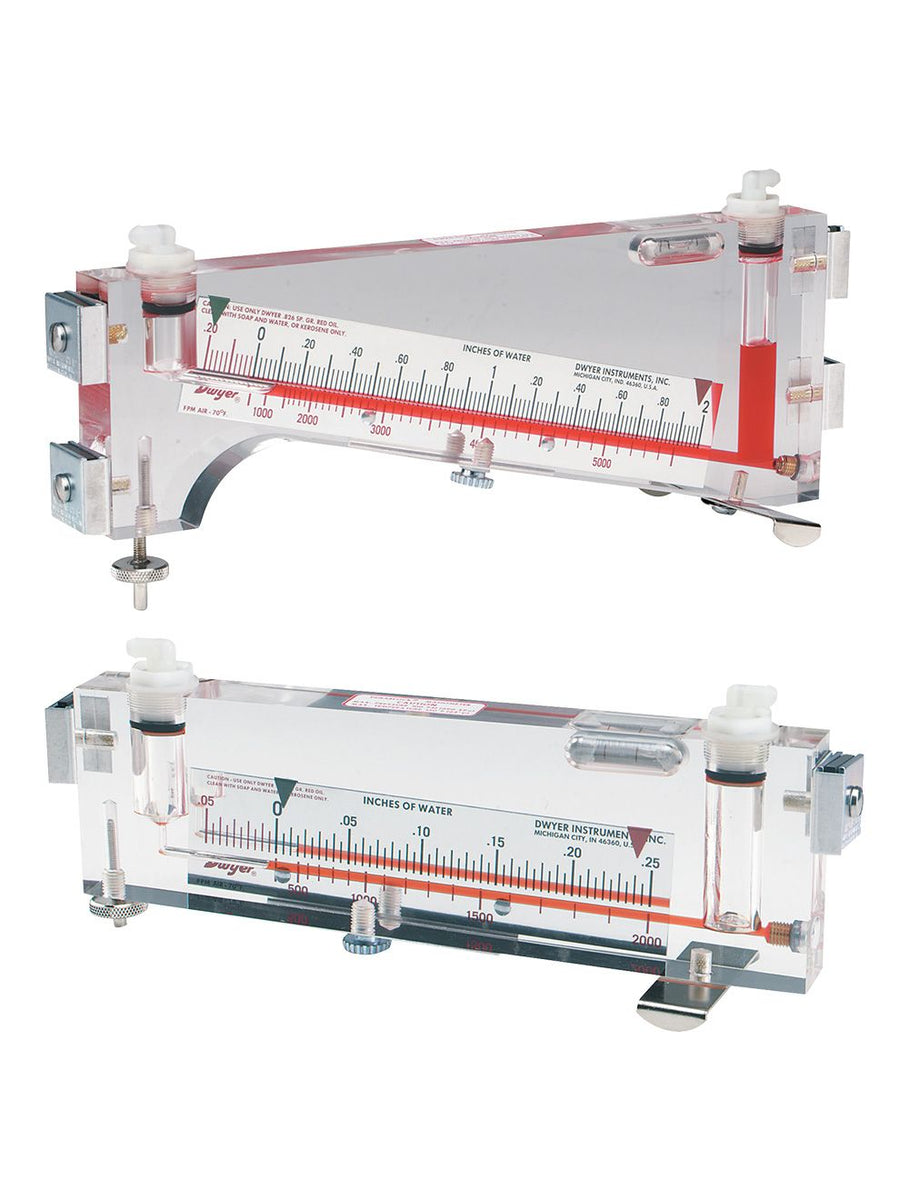

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 102-AV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 102-AV Documents

Bulletin D-2 Series 100 AV Catalog Page Red Gage Fluid - English Red Gage Fluid - French Red Gage Fluid - German Red Gage Fluid - Spanish More Info

Overview

Details for 102-AV

02-AV Dwyer Air Velocity Gage Kit The Dwyer 02-AV Air Velocity Gage Kit is a portable and easy-to-use tool for measuring air velocity in a variety of applications, including HVAC testing, industrial hygiene, and environmental monitoring. The kit includes a handheld gage that measures velocity from 0 to 6000 feet per minute (FPM) and a telescoping probe that extends up to 40 inches. The gage features a large, easy-to-read display and a backlit keypad for use in low-light conditions. It also has a built-in data logger that can store up to 99 readings for later recall and analysis. The 02-AV gage is powered by a 9-volt battery and comes with a carrying case for easy transport. It is a reliable and accurate tool for measuring air velocity, and it is ideal for use in a variety of applications. Features: * Measures air velocity from 0 to 6000 FPM * Telescoping probe extends up to 40 inches * Large, easy-to-read display * Backlit keypad for use in low-light conditions * Built-in data logger stores up to 99 readings * Battery powered (9-volt battery included) * Comes with a carrying case Order your 02-AV Dwyer Air Velocity Gage Kit today from our HVAC supply store and get fast shipping and the best prices on all your industrial supplies!

Series 100 AV Durablock® Air Velocity Gage Kit

Suitable for Total Pressures to 100 psig (6.89 bar), Temperatures to 150°F (65.6°C)

Designed to measure air velocity, static pressure, vacuum or differential pressure, where the additional range of the 400 Series gages is not required. Series 100 Gages offer superb accuracy combined with portability. The Dwyer® Durablock® precision machined solid acrylic plastic construction, the wells and inclined bore are machined to tolerances of ±.0002".

Complete Air Velocity Kits Include:
Dwyer® Inclined Manometer, stainless steel Pitot tube (12" with Models 102 AV & 115 AV), two 9' lengths of rubber tubing with connectors, additional red gage fluid, instruction card H-7, Bulletin H-11 and magnetic mounting clips, air velocity calculator slide rule and carrying case.

Click here, if you require a Material Safety Data Sheet for the Red Gage Fluid.

Plastic Body - A 1" thick solid acrylic block, virtually unbreakable. It isstable and free of the danger of distortion.
Drilled Bore - Permanently free of bends - never requires recalibration due to distortion.
Reflective Chrome Finish Scales - Easily eliminates parallax errors in reading. Adjustable, with thumbscrew locking for easy zeroing. (Model 125 AV uses screw plunger to adjust zero setting).
Red Gage Fluid - .826 specific gravity. Forms a well-shaped, easy-to-read meniscus - the result of high wetability.
Leveling Adjustment - Screw allows quick, accurate leveling. Integral ground glass bubble level provides ready reference.
