1004W-A1-D | Weatherproof pressure switch | adj. range 10-70 psig (.69-4.8 bar) | approx. deadband (fixed) 4 psig (.25 bar). | Dwyer Instruments

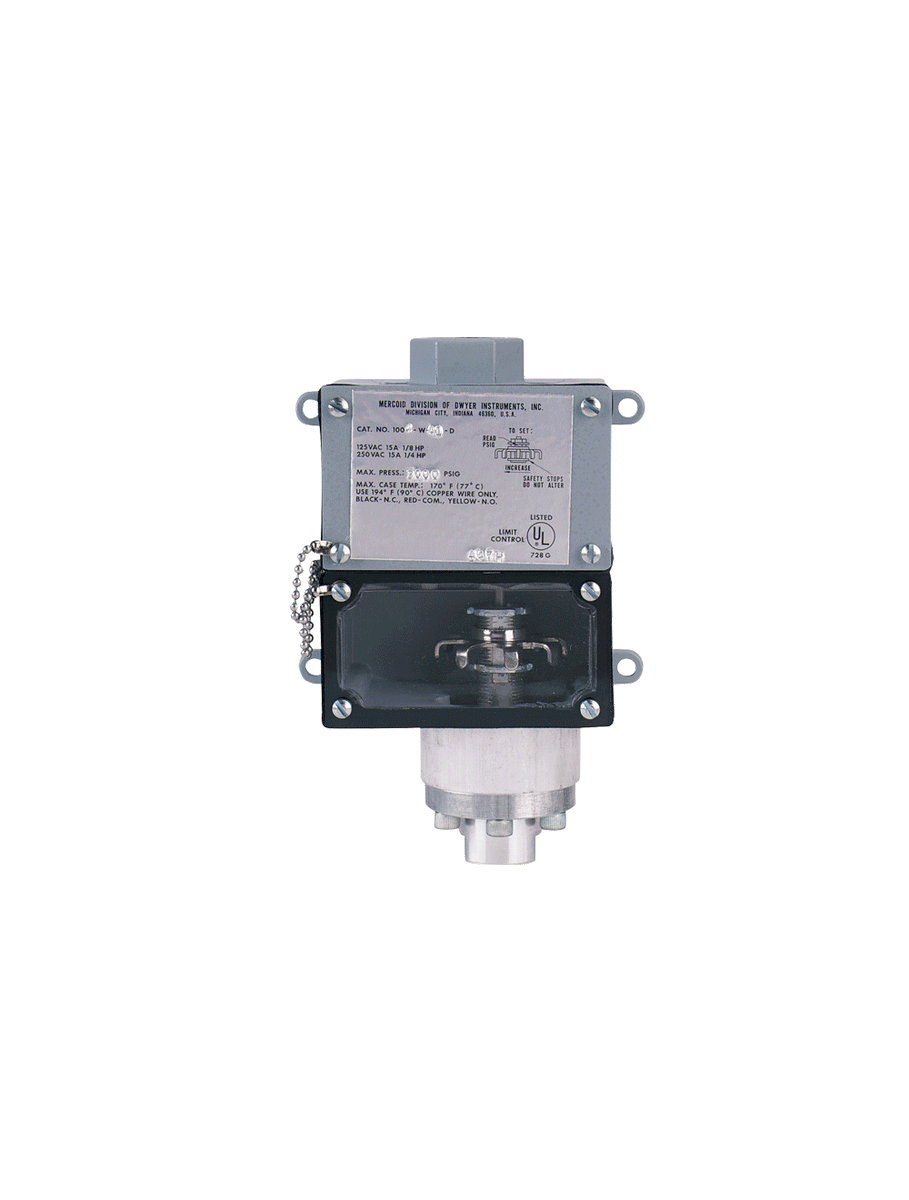

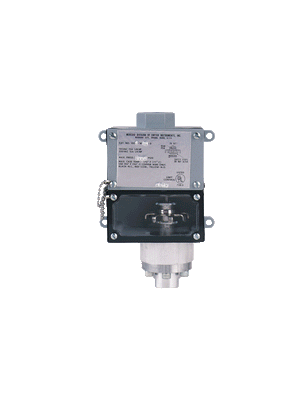

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1004W-A1-D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 1004W-A1-D Documents

Instruction Manual - English Instruction Manual - Spanish Series 1000W Catalog Page More Info

Overview

Details for 1004W-A1-D

PRESSURE SWITCH,10-70# SPDT The Dwyer 1004W-A1-D pressure switch is a reliable and accurate device designed to control pressure within a specified range. It features a SPDT (Single Pole Double Throw) electrical switch, providing versatile control options. The switch is rated for pressures ranging from 10 to 70 psi, making it suitable for a wide range of applications. With its rugged construction and durable materials, the 1004W-A1-D pressure switch ensures long-lasting performance even in harsh industrial environments. It is commonly used in various industries, including manufacturing, HVAC, and fluid handling systems. The pressure switch can be easily set to the desired pressure point using the adjustable set point screw. For reliable and precise pressure control, choose the Dwyer 1004W-A1-D pressure switch. It offers a highly accurate sensing mechanism, ensuring consistent and dependable performance. Shop our HVAC supply store for the most competitive prices and fast shipping.

Series 1000W Weatherproof Diaphragm Operated Pressure Switches

Visible Setpoint, Fixed Deadband, Pressure Ranges to 1400 psi

With extremely rugged construction the Series 1000W Weatherproof DiaphragmOperated Pressure Switch provides excellent reliability in chemical, petroleum andindustrial plants. Bellville spring movement permits mounting of control in any positionand helps prevent contact chatter. New design also provides high over-pressureprotection. Weatherproof housing is standard.

Product Applications

Chemical, petroleum, food and drug processing industries
Process and Industrial applications

Weatherproof housing is ideal for a wide variety of applications where dust or wateris present
Spring movement design provides for control in any mounting position and preventscontact chatter reducing false or inconsistent switching

Specifications

Series: 1000W Weatherproof Diaphragm Operated Pressure Switches
Category/Type: Pressure
Type: Single Pressure
Series: 1000W Weatherproof Diaphragm Operated Pressure Switches
Wetted Materials: See pressure chamber and diaphragm material in model chart.
Temperature Limits: -30 to 170°F (-35 to 77°C).
Pressure Limit: 3000 psig (206.8 bar).
Enclosure Rating: Weatherproof; meets NEMA 4X (IP66).
Switch Type: SPDT snap switch.
Electrical Rating: 15 A @ 125/250 VAC resistive.
Electrical Connections: Screw type.
Conduit Connection: 3/4" female NPT.
Process Connection: 1/4" female NPT.
Mounting Orientation: Any position.
Set Point Adjustment: Internal thumbwheel.
Weight: 3 lb (1.4 kg).
Deadband: See model chart.
Agency Approvals: CE; UL.
