1003W-A1-D | Weatherproof pressure switch | adj. range 5-40 psig (.48-2.8 bar) | approx. deadband (fixed) 2 psig (.14 bar). | Dwyer Instruments

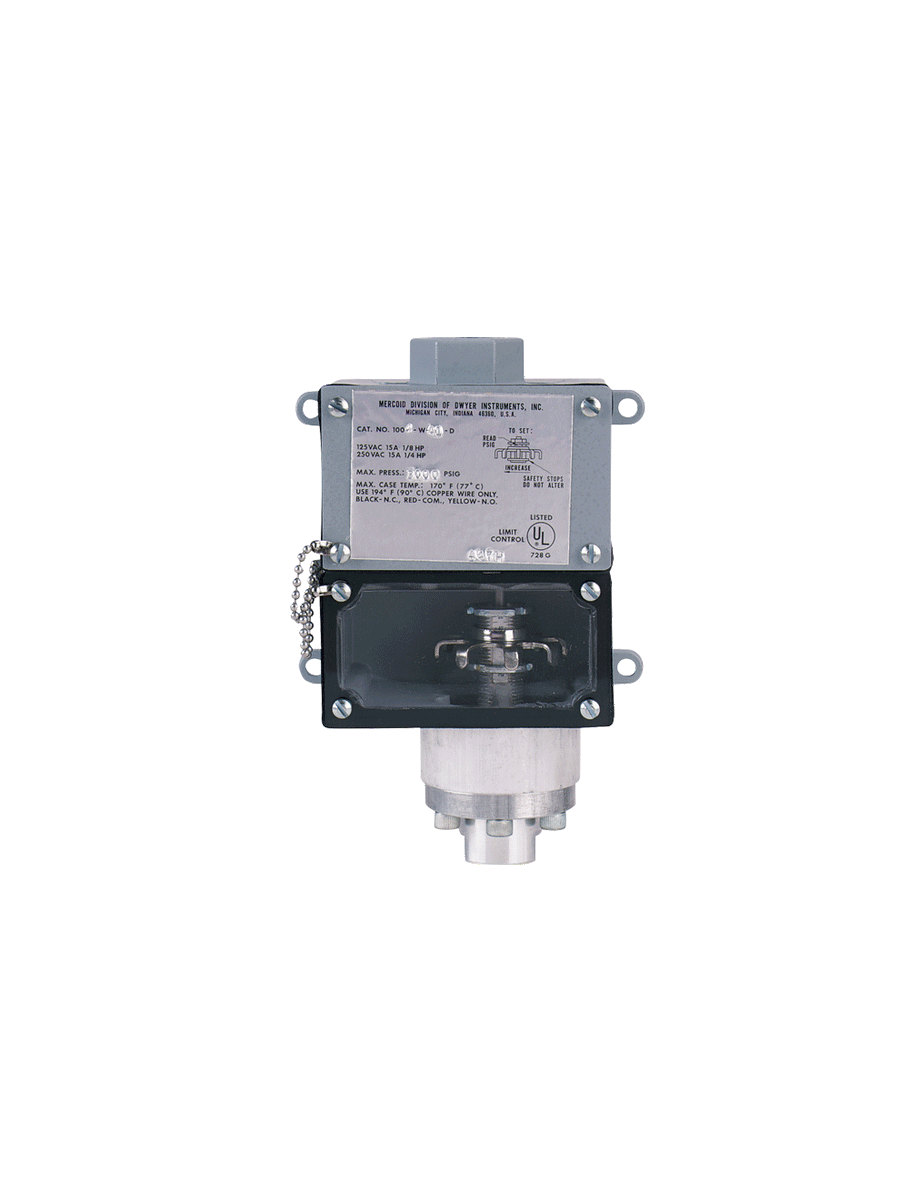

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1003W-A1-D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 1003W-A1-D Documents

Instruction Manual - English Instruction Manual - Spanish Series 1000W Catalog Page More Info

Overview

Details for 1003W-A1-D

Dwyer Instruments NCO-1003W-A1-D Weather Proof Pressure Switch: The NCO-1003W-A1-D from Dwyer Instruments is a weather-proof and durable pressure switch designed for industrial applications. This heavy-duty switch features a NEMA 4 enclosure, making it resistant to dust, water, and other environmental factors. Key Features: * NEMA 4 enclosure for weather resistance * Ideal for industrial applications * Rugged construction ensures reliability and longevity Specifications: * Pressure Range: 0-30 psig * Electrical Connection: 1/2" NPT * Switch Type: SPDT * Contact Rating: 10 amps at 125 VAC Benefits: * Protects against harsh environments * Provides reliable pressure monitoring and control * Backed by the trusted reputation of Dwyer Instruments Applications: * Industrial machinery * Process control * Water treatment systems * HVAC systems Our HVAC supply store offers the best prices and fast shipping for your Dwyer Instruments NCO-1003W-A1-D Weather Proof Pressure Switch. Trust Our HVAC supply store for all your industrial supply needs!

Series 1000W Weatherproof Diaphragm Operated Pressure Switches

Visible Setpoint, Fixed Deadband, Pressure Ranges to 1400 psi

With extremely rugged construction the Series 1000W Weatherproof DiaphragmOperated Pressure Switch provides excellent reliability in chemical, petroleum andindustrial plants. Bellville spring movement permits mounting of control in any positionand helps prevent contact chatter. New design also provides high over-pressureprotection. Weatherproof housing is standard.

Product Applications

Chemical, petroleum, food and drug processing industries
Process and Industrial applications

Weatherproof housing is ideal for a wide variety of applications where dust or wateris present
Spring movement design provides for control in any mounting position and preventscontact chatter reducing false or inconsistent switching

Specifications

Series: 1000W Weatherproof Diaphragm Operated Pressure Switches
Category/Type: Pressure
Type: Single Pressure
Series: 1000W Weatherproof Diaphragm Operated Pressure Switches
Wetted Materials: See pressure chamber and diaphragm material in model chart.
Temperature Limits: -30 to 170°F (-35 to 77°C).
Pressure Limit: 3000 psig (206.8 bar).
Enclosure Rating: Weatherproof; meets NEMA 4X (IP66).
Switch Type: SPDT snap switch.
Electrical Rating: 15 A @ 125/250 VAC resistive.
Electrical Connections: Screw type.
Conduit Connection: 3/4" female NPT.
Process Connection: 1/4" female NPT.
Mounting Orientation: Any position.
Set Point Adjustment: Internal thumbwheel.
Weight: 3 lb (1.4 kg).
Deadband: See model chart.
Agency Approvals: CE; UL.
