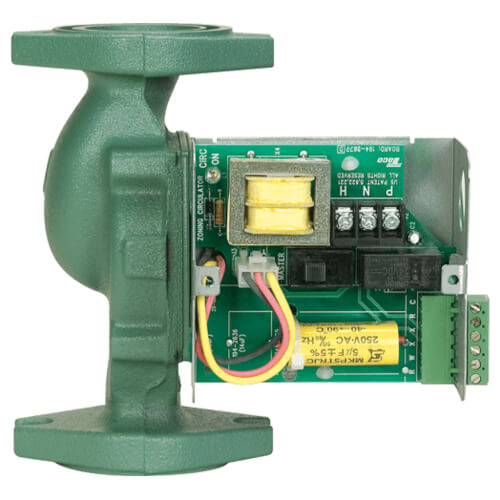

009-ZF5-2 | Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.4A | 3250 RPM | Flanged | 10 GPM | 35ft Max Head | 125 PSI Max Press. | Series 009 | Taco

115v 1/8hp ZONING CIRCULATOR The Taco [sku] is a compact and efficient 115v 1/8hp zoning circulator designed for residential and light commercial applications. Its durable construction and reliable operation make it an excellent choice for circulating hot or chilled water in hydronic systems. Key Features: * Compact design for easy installation in tight spaces * Durable cast iron construction for long-lasting performance * Mechanical seal for leak-free operation * 1/8th horsepower motor provides ample flow for most zoning applications Benefits: * Improves system efficiency by circulating water only where it is needed * Reduces energy consumption by eliminating unnecessary heat loss * Extends the life of system components by preventing corrosion and scaling * Provides quiet operation for a comfortable indoor environment Applications: * Residential and light commercial hydronic heating and cooling systems * Zoning applications to control temperature in different areas of a building * Radiant floor heating systems * Geothermal heat pump systems

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Features

• Universal Thermostat Compatibility, Thermostat Ready
• Can be used in conjunction with other circulators or zone valves
• Available in a full range of sizes from 003-0014
• 00 Reliability
• Snap-In PC Board
• Low and High Voltage Strips
• Removable low-voltage terminal strip simplifies wiring installation
• LED Power Light
• UL and CSA Listed
• 100% Factory Tested
• Made in USA

Typical Applications

• Indirect Hot Water Heaters
• Adding Zones
• Zoning with Circulators
• Prioritizing Under-Sized Zones

  Replacement Parts List:
  Casing O-Ring: 009-005RP
  Flange Gasket Set: 007-007RP
  Cartridge Assembly Complete: 009-021RP
