009-SF5 | Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1.4A | 3250 RPM | Flanged | 10 GPM | 35ft Max Head | 125 PSI Max Press. | Series 009 | Taco

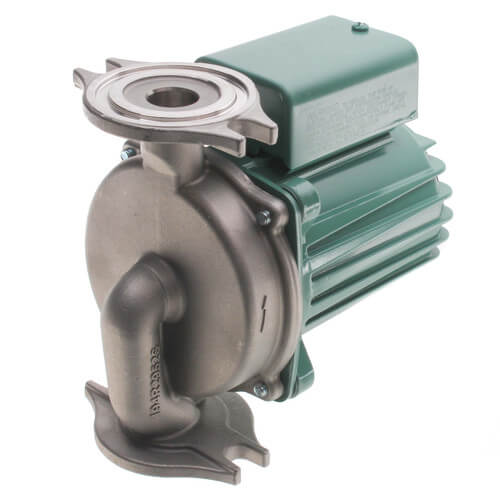

1/8HP 115V 3250RPM SS Flg Circ The Taco 009-SF5 is a 1/8HP, 115V, 3250RPM, stainless steel flanged circulatoræ³µ. It is designed for use in residential and commercial applications, including hydronic heating and cooling systems. The 009-SF5 features a compact design and is easy to install and maintain. It is also energy efficient, with a low operating cost. The 009-SF5 is constructed of durable materials, including a stainless steel housing and impeller. This makes it resistant to corrosion and wear, and ensures a long service life. The pump also features a built-in thermal overload protector, which helps to prevent damage in the event of overheating. The 009-SF5 is a versatile pump that can be used in a variety of applications. It is ideal for circulating hot water in hydronic heating systems, or for circulating chilled water in hydronic cooling systems. It can also be used for other applications, such as circulating water in ponds or fountains. Our HVAC supply store offers the best prices and fast shipping for your products!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The High Velocity Series Taco 009 Cartridge Circulator is designed for a wide range of residential and light commercial, higher-head/lower-flow water circulating applications. Available in cast iron or stainless steel construction. Stainless Steel can be used in higher-head /lower-flow heat recovery, open-loop solar heating and light commercial/domestic water recirculation systems. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit.

Performance Data
Flow Range: 0-10 GPM
Head Range: 0-35 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature: 230 degrees F (110 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

Features
Standard High Capacity Output-Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free Universal
Flange-to-Flange Dimensions
Cast Iron or Stainless Construction

Typical Applications
Hydronic Heating
Radiant In-Floor/Panel Heating
Closed-Loop Solar Heating Systems

Replacement Parts List:
Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 009-022RP
