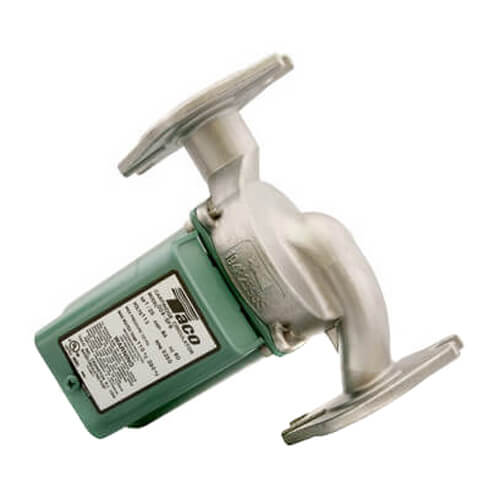

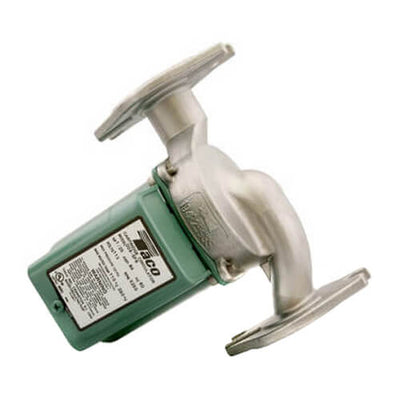

008-SF6-IFC | Circulator Pump | Stainless Steel | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 12.5 GPM | 15ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 008 | Taco

Taco NCO-008-SF6-IFC 1/25HP 115V 3250RPM SS IFC CIR The Taco NCO-008-SF6-IFC is a high-performance centrifugal pump circulator, engineered for closed-loop hydronic heating and cooling systems. Featuring a compact design, this circulator combines efficiency, reliability, and ease of maintenance. Crafted with stainless steel construction, the Taco NCO-008-SF6-IFC ensures durability and longevity, even in demanding operating conditions. The unit's innovative impeller design minimizes noise and vibration, contributing to a quieter operating environment. Offering exceptional flow rates and pressure capabilities, this circulator provides optimal circulation within hydronic systems. Its compact size makes it suitable for both residential and commercial applications, where space constraints may be a concern. The Taco NCO-008-SF6-IFC incorporates a three-speed manual switch, allowing you to adjust the flow rate to meet the specific requirements of your system. Its built-in check valve prevents backflow and ensures proper system operation. Choose the Taco NCO-008-SF6-IFC circulator for reliable, efficient, and quiet hydronic system performance. Order now from our HVAC supply store, your trusted source for HVAC and plumbing solutions!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The redesigned 008-IFC features a larger removable Integral Flow Check, designed to improve pumpperformance, simplify piping and reduce installation costs. The spring loaded IFC replaces a separate in-line flow check to ensure protection against reverse flow and gravity flow. The low pressure drop of the IFC increases flow performance vs. in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.

Application:

• Hydronic Heating/Cooling
• Hydro-Air Fan Coils
• Radiant
• Domestic Water Recirculation (Bronze / Stainless Steel)
• Indirect Water Heaters

Features:

• Integral Flow Check: Simplifies piping, Prevents reverse flow and gravity flow, Eliminates separate in-line flow check, Reduces installed cost, Improves system performance, Easy to service
• Unique replaceable cartridge-field serviceable
• Unmatched reliability-maintenance free
• Quiet, efficient operation
• Self lubricating, No mechanical seal
• Wide range of applications
• Flanged connections

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 008-045RP
Valve Assembly Trans/Relay: 0010-025RP
