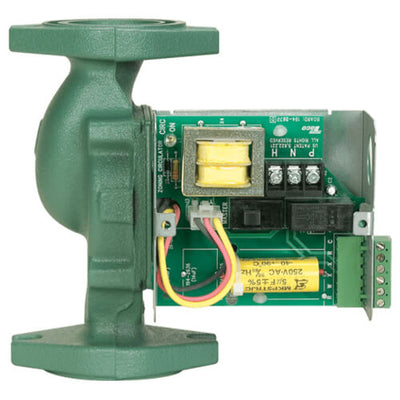

007-ZF5-10 | Circulator Pump | Cast Iron | 1/25 HP | 115V | Single Phase | 0.71A | 3250 RPM | Flanged | 17 GPM | 8.5ft Max Head | 125 PSI Max Press. | Series 007 | Taco

1/25HP 115V CI FLG ZONING CIRC The Taco 007-ZF5-10 is a 1/25HP, 115V, CI FLG zoning circulator pump designed for residential and light commercial applications. It features a cast iron construction for durability and long life, and a permanently lubricated motor for maintenance-free operation. The 007-ZF5-10 is also self-priming and has a maximum flow rate of 10 GPM. This pump is ideal for use in hydronic heating and cooling systems, as well as for circulating hot water in domestic applications. It is also suitable for use in industrial applications, such as chemical processing and food processing. The Taco 007-ZF5-10 is a reliable and efficient pump that is built to last. It is backed by a 1-year warranty. Shop now at our HVAC supply store for the best prices and fast shipping on all your HVAC needs!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Features

• Flange Type R
• Universal Thermostat Compatibility, Thermostat Ready
• Can be used in conjunction with other circulators or zone valves
• Available in a full range of sizes from 003-0014
• 00 Reliability
• Snap-In PC Board
• Low and High Voltage Strips
• Removable low-voltage terminal strip simplifies wiring installation
• LED Power Light
• UL and CSA Listed
• 100% Factory Tested
• Made in USA

Typical Applications

• Indirect Hot Water Heaters
• Adding Zones
• Zoning with Circulators
• Prioritizing Under-Sized Zones

  Replacement Parts List:
  Casing O-Ring: 008-005RP
  Flange Gasket Set: 007-007RP
  Cartridge Assembly Complete: 007-042RP
