006-ST4-2PNP | 006 Plumb N' Plug Stainless Steel Circulator, 1/40 HP (w/ Digital Timer & Line Cord) | Taco

Taco 006-ST4-2PNP 3/4"NPT 115V 1/40HP CIRC/TIMER The Taco 006-ST4-2PNP is a 3/4"NPT 115V 1/40HP circulator pump with a built-in timer. This pump is designed for use in hydronic heating systems and is ideal for circulating water through radiant floor heating systems or baseboard heaters. The 006-ST4-2PNP features a cast iron body and a bronze impeller, making it durable and long-lasting. The pump also has a built-in thermal overload protector to prevent damage if the motor overheats. The 006-ST4-2PNP is a versatile pump that can be used in a variety of applications. It is ideal for use in residential and commercial buildings, and can be installed in either horizontal or vertical orientations. The pump is also self-priming, which means that it can be installed without the need for a priming valve. The 006-ST4-2PNP is a reliable and efficient pump that is built to last. It is an excellent choice for use in hydronic heating systems, and is backed by Taco's 1-year warranty. Our HVAC supply store offers the best prices and fast shipping for your products!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

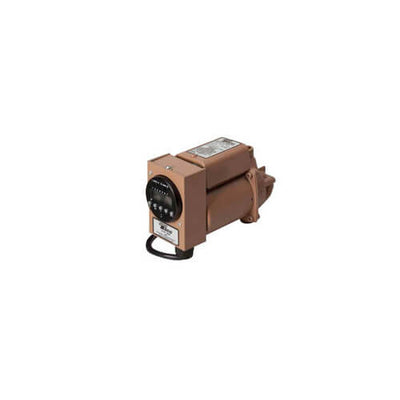

NOTE: Image representative of bronze model of product

Overview

The 003 and 006 Plumb n' Plug® Cartridge Circulators are designed to conserve water, increase comfortand reduce the delivery time of hot water to outlet fixtures by periodically re-circulating hot water throughthe system. An average residence can save up to 25 gallons of wasted water per day. Factory pre-wired 6foot line cord with optional 24 hour analog or 7 day digital programmable clock timers allow for easyinstallation. Simply Plumb it in, then Plug it in. Plumb n' Plug® circulators include all the standard 00®maintenance-free design features-no mechanical seal, self lubricating, replaceable cartridge, quiet, efficientoperation and unmatched reliability

The Taco 006 PNPis designed for systems using 200-400 feet of 3/4" pipe. Installation of isolation valves, pipe insulationand flow checks are recommended.

Features

• Factory Installed 6' Line Cord and 24Hour/15 Minute Interval Digital Timer
• UL Listed
• Quiet, Efficient Operation
• Direct Drive-Low Power Consumption
• Unique Replaceable Cartridge Design-FieldServiceable
• Self Lubricating
• No Mechanical Seal
• Unmatched Reliability-Maintenance Free

Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
