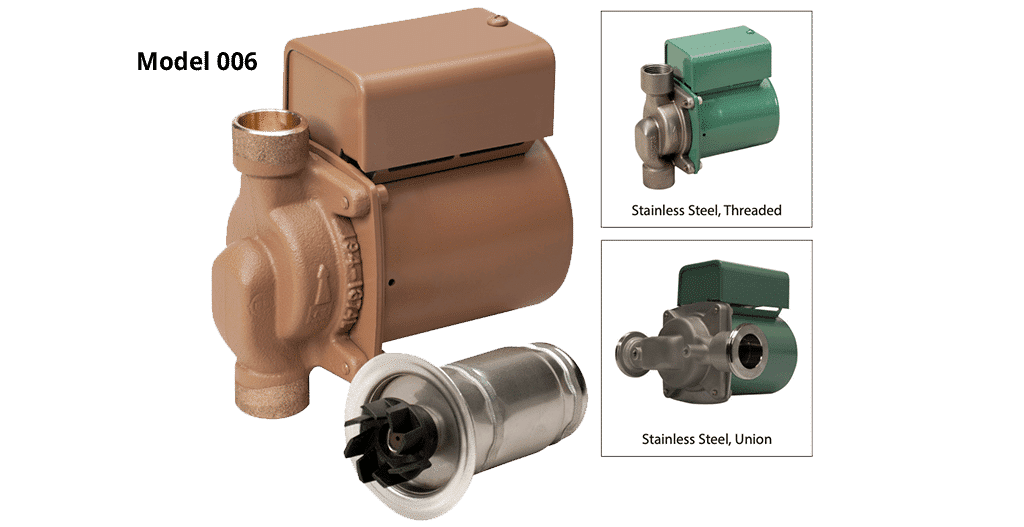

006-BC7-4IFC | Circulator Pump | Bronze | 1/40 HP | 115V | Single Phase | 0.52A | 3250 RPM | Sweat (3/4") | 9 GPM | 8.5ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 006 | Taco

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 006-BC7-4IFC

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco 006-BC7-4IFC Documents

Datasheet Installation Instructions More Info

Overview

Details for 006-BC7-4IFC

Taco 3/4" SwtBrzCirc w/IntFlwChk&Rly [sku] The Taco 3/4" SwtBrzCirc w/IntFlwChk&Rly is a high-performance circulator designed for use in residential and light commercial heating and cooling systems. This circulator features a 3/4-inch NPT connection, a flow rate of up to 10 GPM, and a head pressure of up to 14 feet. It is constructed of durable cast iron and brass for long-lasting performance and is equipped with a built-in flow check valve and relay for added efficiency and reliability. This circulator is ideal for use in a variety of applications, including radiant floor heating, baseboard heating, and chilled water systems. Features and Benefits: - 3/4-inch NPT connection - Flow rate of up to 10 GPM - Head pressure of up to 14 feet - Durable cast iron and brass construction - Built-in flow check valve and relay Shop now at our HVAC supply store for the best prices and fast shipping on the Taco 3/4" SwtBrzCirc w/IntFlwChk&Rly.

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union

Features

Standard High Capacity Output
- Compact Design
Quiet, Efficient Operation
Direct Drive–Low Power Consumption
Unique Replaceable Cartridge Design
- Field Serviceable
Self lubricating
No Mechanical Seal
Unmatched Reliability–Maintenance Free
Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance

Applications

Hydronic Heating System
Hydro-Air Fan Coils
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems
Radiant Heating Systems
