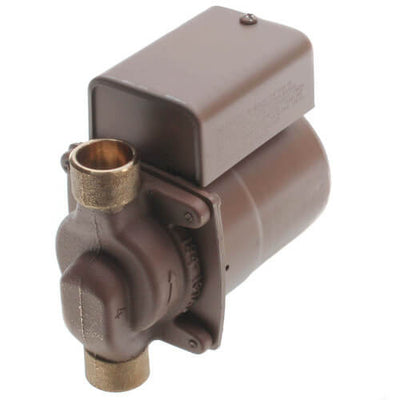

006-B4-3 | Circulator Pump | Bronze | 1/40 HP | 115V | Single Phase | 0.52A | 3250 RPM | Sweat (3/4") | 10 GPM | 9ft Max Head | 125 PSI Max Press. | Series 006 | Taco

Durable and Reliable: Taco 1/40HP 115V 3/4" BrzCirc W/Rly (006-B4-3)The Taco 1/40HP 115V 3/4" BrzCirc W/Rly (006-B4-3) is a high-quality circulator pump designed for efficient and dependable fluid circulation in residential and commercial heating and cooling systems. This compact and versatile pump features robust construction and advanced technology, making it ideal for a wide range of applications. Powerful Performance: Driven by a durable 1/40 horsepower motor, this pump delivers a flow rate of up to 10 GPM, ensuring effective circulation of fluids. Its 115-volt operation makes it compatible with standard electrical systems, and the 3/4-inch NPT threaded connections provide secure and leak-free installation. Versatile Applications: The Taco 1/40HP 115V 3/4" BrzCirc W/Rly (006-B4-3) is suitable for various hydronic heating and cooling systems, including baseboard convectors, radiant floor heating, and snow melting systems. Its compact design allows for easy integration into tight spaces, making it an excellent choice for retrofit projects or new installations. Reliable Construction: Built with high-quality materials, this pump is designed to withstand the demands of continuous operation. Its bronze impeller provides excellent corrosion resistance, ensuring long-lasting performance, even in harsh conditions. The heavy-duty housing protects the internal components from wear and tear, guaranteeing reliable operation over an extended lifespan.Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Performance Data
Flow Range: 0-10 GPM
Head Range: 0-9 Feet
Minimum Fluid Temperature: 40¦F (40¦C)
Maximum Fluid Temperature: 220¦F (104¦C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1 , 1-1/4", 1-1/2" CI Flanged or 1/2 Swt, 3/4" Swt, 3/4 NPT, or Union
The TACO 006 is designed for circulating hot or chilled fresh water in open or closed loop applications. Typical uses include hydronic heating, domestic hot water recirculation, hydro-air heating/cooling, heat recovery units, water source heat pumps, drain down open loop solar systems and potable water applications. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. The compact, low power consumption design is ideal for high efficiency jobs.
Features
Standard High Capacity Output-Compact Design
Quiet, Efficient Operation
Direct Drive-Low Power Consumption
Unique Replaceable Cartridge Design-Field Serviceable
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Cast Iron, Flanged or Bronze Construction with Sweat, Threaded or Union Connections
Typical Applications
Hydronic heating
Domestic hot water recirculation
Hydro-air heating/cooling
Heat recovery units
Water source heat pumps
Drain down open loop solar systems
Potable water applications

Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
