005-SF2 | Circulator Pump | Stainless Steel | 1/35 HP | 115V | Single Phase | 0.54A | 3250 RPM | Flanged | 19 GPM | 9ft Max Head | 125 PSI Max Press. | Series 005 | Taco

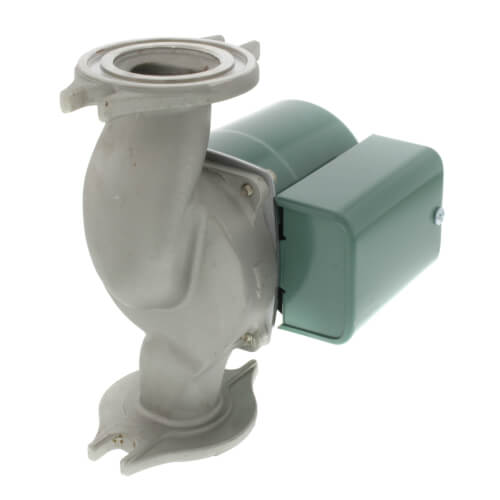

1/35HP 115V Stainless Steel Flanged Circulator from Taco [SKU: 005-SF2] Taco's 1/35HP 115V Stainless Steel Flanged Circulator (SKU: 005-SF2) is designed to provide reliable fluid circulation in industrial and commercial applications. With its compact design, this circulator offers a flow rate of up to 10 GPM and a maximum operating pressure of 125 PSI. Constructed with durable stainless steel, this circulator is resistant to corrosion and wear, ensuring longevity in demanding environments. Its flanged connections allow for easy installation and maintenance. The 1/35 horsepower motor operates efficiently at 115 volts, providing ample power for various circulation tasks. Applications: - Hydronic heating systems - Industrial cooling circuits - Fluid transfer systems Features: - 1/35HP motor for efficient operation - 115V power supply for compatibility with standard electrical systems - Stainless steel construction for durability and corrosion resistance - Flanged connections for secure installation - Compact design for space-saving applications - Maximum flow rate of 10 GPM - Maximum operating pressure of 125 PSI Our HVAC supply store is your trusted source for Taco products. Contact us today to learn more about this 1/35HP 115V Stainless Steel Flanged Circulator and other industrial-grade products. We offer competitive prices, fast shipping, and expert support to ensure your satisfaction.

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Taco 005 Cartridge Circulator is designed for a wide range of residential and light commercial water circulating applications. Unique replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Compact, direct-drive design and low-power consumption are ideal for high efficiency jobs.

Performance Data
Flow Range: 0-19.5
GPM Head Range: 0-9.0 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature, Cast Iron: 230 degrees F (110 degrees C)
Maximum Fluid Temperature, Stainless Steel: 220 degrees F (104 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

Features:
Standard High Capacity Output Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Cast Iron or Stainless Steel Construction

Typical Applications
Hydronic Heating
Add-A-Zone Additions
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
