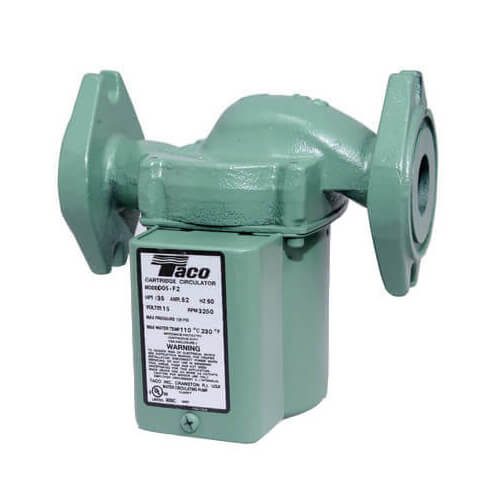

005-F2-2IFC | Circulator Pump | Cast Iron | 1/35 HP | 115V | Single Phase | 0.54A | 3250 RPM | Flanged | 19 GPM | 9ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 005 | Taco

The Taco 005-F2-2IFC 1/25hp 115V CI FLNG CIRCULATOR is a durable and efficient pump designed for industrial applications. With an oil-filled motor and stainless steel construction, it can withstand harsh conditions. The pump features a flow rate of 20 GPM and a pressure of 20 PSI, making it suitable for a wide range of tasks, including water transfer, hydronic heating, and cooling. Its compact size and convenient flange mounting make it easy to install in various applications. Key Features: • 1/25hp motor • 115V • Flow rate of 20 GPM • Pressure of 20 PSI • Oil-filled motor • Stainless steel construction • Compact size • Flange mounting Benefits: • Durable and long-lasting • Suitable for harsh conditions • Wide range of applications • Easy to install Shop our HVAC supply store for the best prices and fast shipping on Taco pumps and other industrial equipment.

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators

Performance Data
Flow Range: 0-13.5 GPM
Head Range: 0-7.5 Feet
Minimum Fluid Temperature: 40+F (4+C)
Maximum Fluid Temperature: 230+F (110+C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2", 2" Flanged
The Taco 005-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with "00" circulators on Hydronic or Radiant heating, Hydro-Air Fan Coils or Indirect water heaters. By locating the patented IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC, increases the 005 flow performance up to 240% over in-line check valves. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit. The 005-Z-IFC combines the circulator, flow-check and patented Priority Zoning control with built-in transformer, relay and priority switch in one complete compact package to make it ideal for zoning.
Features
* Integral Flow Check (IFC) Patent # 5,664,939
Prevents gravity flow
Eliminates separate in-line flow check
Reduces installed costs, easy to service
Improved performance vs. In-line flow checks
* Unique replaceable cartridge-field serviceable
* Unmatched reliability-Maintenance free
* Quiet, efficient operation
* Direct drive-Low power consumption
* Self lubricating, No mechanical seal
* Wide range of applications
* Cast Iron or Bronze Construction
Typical Applications
Hydronic or Radiant heating
Hydro-Air Fan Coils or Indirect water heaters

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-019RP
Valve Assembly Trans/Relay: 0010-025RP
