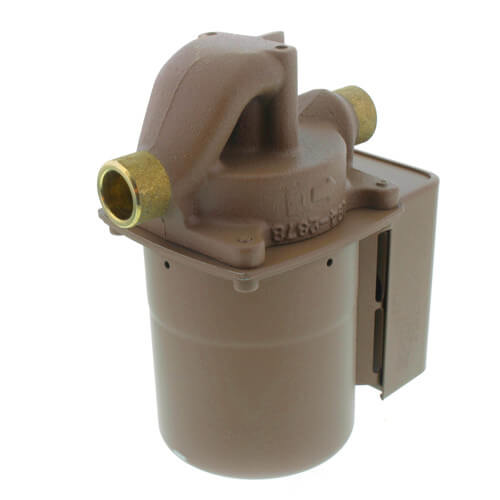

003-BC4-1IFC | Circulator Pump | Bronze | 1/40 HP | 115V | Single Phase | 0.43A | 3250 RPM | Sweat (1/2") | 7 GPM | 4.5ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 003 | Taco

1/2"SWT,BRONZE IFC CIR PUMP The Taco 003-BC4-1IFC is a 1/2" SWT bronze IFC circulator pump designed for use in residential and light commercial hydronic heating and cooling systems. The pump features a bronze body, stainless steel shaft, and carbon-graphite bearings for durability and long life. The pump is also equipped with a built-in check valve to prevent backflow. The Taco 003-BC4-1IFC is a reliable, efficient, and affordable choice for circulator pump applications. With its compact design and easy installation, it is a great option for both new and replacement installations. Features: * Bronze body for durability and corrosion resistance * Stainless steel shaft for strength and long life * Carbon-graphite bearings for quiet operation and long life * Built-in check valve to prevent backflow * Compact design for easy installation * 1/2" SWT connections * 115V/60Hz/1.9A * 30 ft. max. head * 10 GPM max. flow rate Shop our HVAC supply store today for the best prices and fast shipping on all your HVAC needs!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

The Taco 003 is designed for circulating hot or chilled fresh water in open or closed loop,lower flow applications. Flow characteristics are ideal for Domestic HotWater Recirculation,Heat Recovery units,Water Source Heat Pumps, and PotableWater systems. The unique, replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing theentire circulator. The compact, low power consumption design is ideal for high efficiency jobs.

Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 003-001RP
Valve Assembly Trans/Relay: 006-047RP

This item abides by the 2014 low lead requirements
