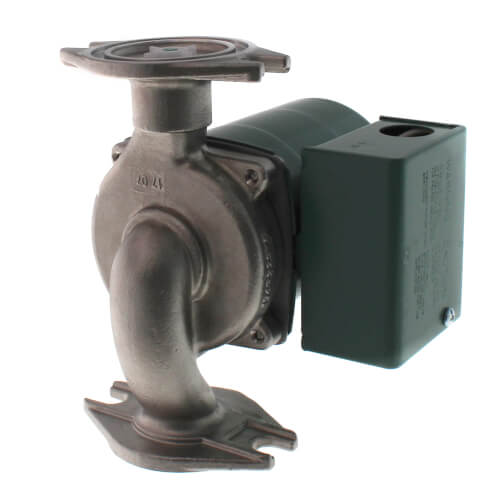

0015-MSSF3-1IFC | Circulator Pump | Stainless Steel | 1/20 HP | 115V | Single Phase | 1.65A | 3250 RPM | Flanged | 42 GPM | 14ft Max Head | 125 PSI Max Press. | Integral Flow Check | Multi Speed | Series 0015 | Taco

1/20HP 115V S.S. ROTATED FLNG [sku] from Taco is a premium-grade industrial motor designed for demanding applications. Featuring a compact design and corrosion-resistant construction with a rolled steel frame and aluminum flange, this motor offers exceptional durability and longevity. Its rotated flange design allows for flexible mounting options, making it suitable for various setups. The 1/20 horsepower motor operates on 115 volts and delivers a reliable performance. This Taco motor is ideal for a wide range of industrial applications, including pumping, ventilation, and machine operation. Its compact design, durability, and versatility make it a valuable asset for any industrial or commercial setting. Shop now at our HVAC supply store for the best prices and fast shipping on your industrial motor needs.

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The 0015 3-Speed pump is specifically designed for the wide range of flow and head requirements of today?s hydronic heating systems. Its? 3-Speed switching capa-bility provides fine tuning control to match a wide combination of tube diameters and length of runs. The 0015 3-Speed is a direct replacement for the Grundfos UPS 15-58 3-Speed. The 0015 delivers the highest starting torque in its class and includes a removable, uni-body Integral Flow Check (IFC®) that prevents gravity flow, reduces installation costs and improves pump performance. The Stainless Steel 0015 should be used on open, fresh water systems.

Replacement Parts List:
Casing O-Ring: 00R-001RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 0015-001RP
Valve Assembly Trans/Relay: 0010-025RP

Features:

• 3-Speed Switch
• Fine tune to system requirements
• Highest performance & starting torque in class
• Heavy duty construction for longer life
• 4-bolt universal flange (0010 only)
• Removable high-flow Integral Flow Check (IFC)
• Replaceable cartridge design
• Quiet, efficient operation
• Self lubricating, no mechanical seal
• Wide range of applications
• Stainless steel, flanged construction
