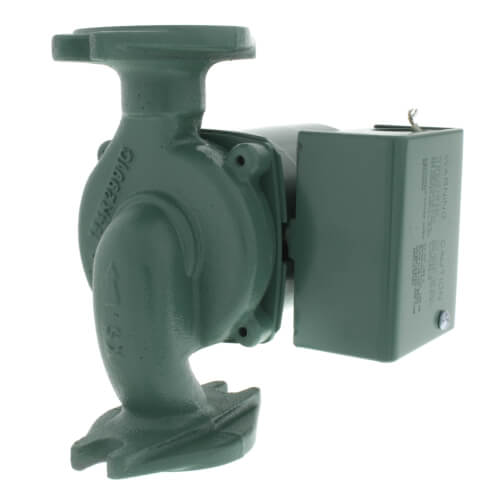

0015-MSF3-IFC | Circulator Pump | Cast Iron | 1/20 HP | 115V | Single Phase | 1.65A | 3250 RPM | Flanged | 42 GPM | 14ft Max Head | 125 PSI Max Press. | Integral Flow Check | Multi Speed | Series 0015 | Taco

Taco 0015-MSF3-IFC 1/20HP 115V C.I. FLG 3SPD CIRC The Taco 0015-MSF3-IFC is a 1/20HP, 115V, C.I. FLG, 3SPD circulator pump designed for residential and commercial applications. It features a cast iron construction for durability and long-lasting performance. The pump has a maximum flow rate of 15 GPM and a maximum head of 25 feet. It is also equipped with a built-in check valve to prevent backflow. The Taco 0015-MSF3-IFC is ideal for use in hydronic heating and cooling systems, as well as domestic hot water recirculation systems. It is also suitable for use in industrial applications such as chemical processing and manufacturing. Our HVAC supply store offers the best prices and fast shipping on all Taco products. Shop now to get the best deals on the Taco 0015-MSF3-IFC and other top-quality HVAC parts.

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Everything that goes into the0015-IFC 3-Speed - from thepowerful, high performancemotor to the durable 3-speedswitch - says "heavy duty". Withthe highest starting torque in itsclass, this circulator delivers theperformance and fine tuningcapabilities sure to satisfy themost demanding hydronicssystem installer.

The 3-speed circulatorsfeature a removable, uni-bodyIntegral Flow Check (IFC®) thatmaximizes flow, as well asprevents gravity flow, evenin the tallest buildings. Wiring isa snap thanks to an extra roomycapacitor box and convenientdual electrical knock-outs.

The 0015 3-Speed pump is specifically designed for the wide range of flow andhead requirements of today’s hydronic heating systems. Its’ 3-Speed switching capabilityprovides fine tuning control to match a wide combination of tube diameters and lengthof runs. The 0015 3-Speed is a direct replacement for the Grundfos UPS 15-58 3-Speed.The 0015 delivers the highest starting torque in its class and includes a removable,uni-body Integral Flow Check (IFC®) that prevents gravity flow, reduces installationcosts and improves pump performance.

Features:

• 3-Speed Switch
• Fine tune to system requirements
• Highest performance & starting torque in class
• Heavy duty construction for longer life
• Removable high-flow Integral Flow Check (IFC)
• Replaceable cartridge design
• Quiet, efficient operation
• Self lubricating, no mechanical seal
• Wide range of applications
• Cast Iron, flanged construction

Replacement Parts List:
Casing O-Ring: 00R-001RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 00R-005RP
Valve Assembly Trans/Relay: 0010-025RP
