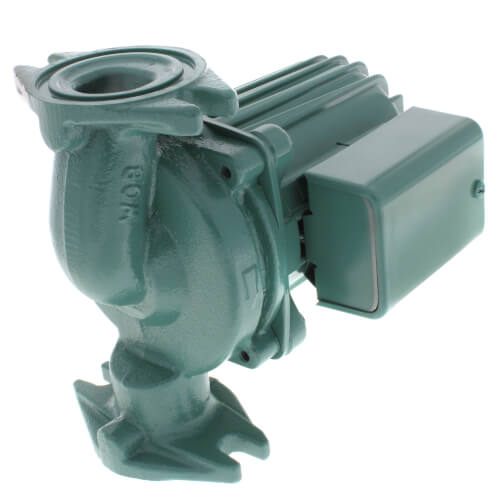

0014-F1-1IFC | Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.45A | 3250 RPM | Flanged | 32 GPM | 22ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 0014 | Taco

TACO Circ Pump, SKU: 0014-F1-1IFC This high-performance centrifugal pump from TACO is designed to circulate liquids in industrial and commercial applications. The 115-volt pump operates at a speed of 3250 RPM, delivering efficient and reliable fluid circulation. Key Features: - Durable construction ensures longevity and reliability. - 115-volt power supply for easy integration. - 3250 RPM speed for efficient fluid circulation. - Discharge port for versatile fluid transfer. Applications: - Industrial and commercial heating and cooling systems. - Fluid circulation in manufacturing processes. - Water transfer in plumbing systems. Order your TACO Circ Pump from our HVAC supply store today and benefit from our competitive pricing and fast shipping. We offer the best solutions for your industrial and maintenance needs!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Performance Data
Flow Range: 0-29 GPM
Head Range: 0-23 Feet
Minimum Fluid Temperature: 40+F (4+C)
Maximum Fluid Temperature: 230+F (110+C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2 Flanged
The 0014-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with "00" circulators on medium head/medium flow Hydronic or Radiant heating, Hydro-Air Fan Coils or closed loop solar heating systems. by locating the patented IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC, increases the flow performance over in-line check valves. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit. The 0014-Z-IFC combines the circulator, flow-check and patented Priority Zoning control with built-in transformer, relay and priority switch in one complete, compact package to make it ideal for zoning.

Features
* Integral Flow Check (IFC) Patent# 5,664,939
Prevents gravity flow
Eliminates separate in-line flow check
Reduces installed cost, easy to service
Improved performance vs. In-line flow checks
* Unique replaceable cartridge-Field serviceable
* Unmatched Reliability --Maintenance Free
* Quiet, efficient operation
* Direct drive-Low power consumption
* Self-lubricating, No mechanical seal
* Standard high capacity output-Compact design
* Wide range of applications
* Cast Iron or Bronze Construction, Flanged connections

Typical Applications
* Medium head/medium flow Hydronic or Radiant heating
* Hydro-Air Fan Coils
* Closed loop solar heating systems

Replacement Parts List:
Casing O-Ring: 009-028RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0014-004RP
Valve Assembly Trans/Relay: 0012-021RP
