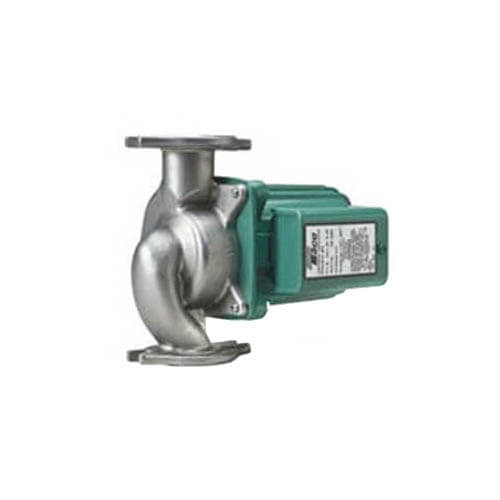

0013-SF3-IFC | Circulator Pump | Stainless Steel | 1/6 HP | 115V | Single Phase | 2A | 3250 RPM | Flanged | 34 GPM | 33ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 0013 | Taco

Taco 0013-SF3-IFC 1/6 HP Circulator Pump: The Taco 0013-SF3-IFC Circulator Pump is a high-performance pump designed for residential and light commercial applications. It features a 1/6 HP motor that provides excellent flow rates and pressures for hydronic heating and cooling systems. Crafted from stainless steel, this pump is built to withstand harsh conditions and ensure long-lasting durability. Its compact design makes it easy to install in tight spaces, while its efficient operation helps reduce energy consumption. With its reliable performance, the Taco 0013-SF3-IFC Circulator Pump is an ideal choice for circulating hot or chilled water in residential and commercial buildings. Its technical specifications include: - Power: 1/6 HP - Voltage: 115V - Flow Rate: Up to 12 GPM - Pressure: Up to 14 feet - Material: Stainless Steel Our HVAC supply store is your trusted source for the Taco 0013-SF3-IFC Circulator Pump. We offer competitive prices and fast shipping to ensure you get the products you need, when you need them. Contact us today for more information or to place your order!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The 0013-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with 00®circulators on high head / high flow hydronic or radiant heating, hydro-air fan coils or heat exchangersand geothermal systems. By locating the removable, spring-loaded IFC inside the pump casing, aseparate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of theIFC, increases the 0013 flow performance over in-line check valves. Both the IFC and cartridge areeasily accessed for service instead of replacing the entire unit.

Replacement Parts List:
Casing O-Ring: 009-028RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 0013-004RP
Cartridge Assembly Complete: 0013-008RP
Valve Assembly Trans/Relay: 0012-021RP

Features:

• Integral Flow Check: Prevents gravity flow, Eliminates separate in-line flow check, Reduces installed cost, Improves system performance, Easy to service
• Unique replaceable cartridge-field serviceable
• Unmatched reliability-maintenance free
• Quiet, efficient operation
• Direct drive - Low power consumption
• Self lubricating, No mechanical seal
• Standard high capacity output - Compact design
• Wide range of applications
• Flanged connections
