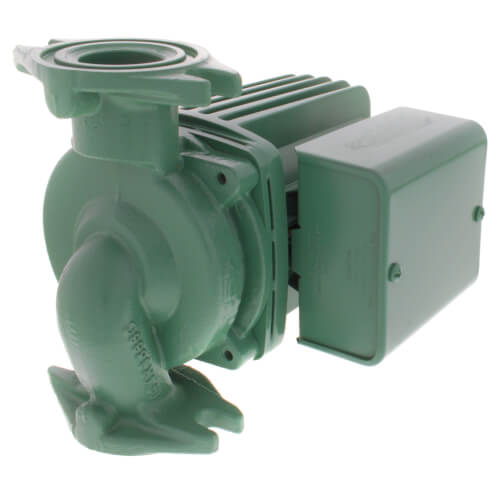

0013-F3 | Circulator Pump | Cast Iron | 1/6 HP | 115V | Single Phase | 2A | 3250 RPM | Flanged | 34 GPM | 33ft Max Head | 125 PSI Max Press. | Series 0013 | Taco

1/6HP 115V CI Flgd CirculatorPump Products [sku] is a high-quality, energy-efficient circulator pump designed for use in residential and commercial applications. This pump features a durable cast iron construction, a powerful 1/6 horsepower motor, and a variety of features that make it easy to install and maintain. The Pump Products [sku] is ideal for circulating water in a variety of applications, including hydronic heating systems, solar thermal systems, and geothermal systems. This pump is also self-priming, which means that it can be installed in areas where there is no available water pressure. The Pump Products [sku] is backed by a 1-year warranty and is available in a variety of sizes to meet the needs of any application. Our HVAC supply store has the best prices and fastest shipping on Pump Products products!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Performance Data
Flow Range: 0-33 GPM
Head Range: 0-33 Feet
Minimum Fluid Temperature: 40+F (4+C)
Maximum Fluid Temperature: 230+F (110+C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4¯, 1¯, 1-1/4", 1-1/2" Flanged
The Taco 0013 is specifically designed for high head/high flow applications in Large Residential and Light Commercial systems. Ideal for high pressure drop Boilers, Fan Coil units, Heat Exchangers, larger Radiant systems, Heat Recovery and Geothermal systems. The Bronze 0013 should be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0013 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs.

Features
Exclusive Anti-Condensate Baffle (ACB) with Ambient Air Flow-Protects motor windings against condensate buildup.
High Velocity Performance-Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Cast Iron or Bronze Construction

Typical Applications
High pressure drop Boilers
Fan Coil units
Heat Exchangers
larger Radiant systems
Heat Recovery
Geothermal systems

Replacement Parts List:
Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 0013-003RP
Cartridge Assembly Complete: 0013-007RP
