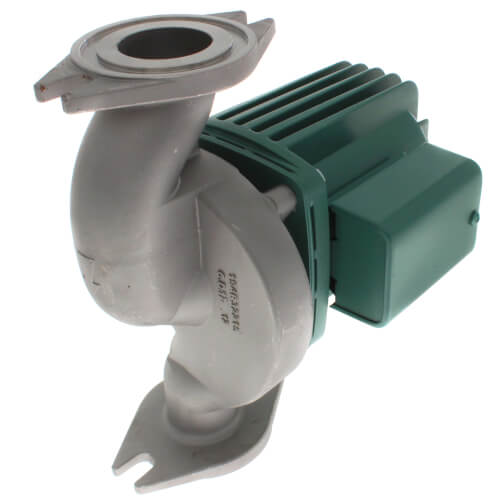

0012-SF4 | Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1.33A | 3250 RPM | Flanged | 52 GPM | 14.5ft Max Head | 125 PSI Max Press. | Series 0012 | Taco

115V 1-1/2" FLGD SS CIRCULATOR [sku: 0012-SF4; brand: Taco] Taco 115V 1-1/2" FLGD SS CIRCULATOR is a high-performance circulator designed for demanding industrial applications. This circulator features a durable stainless steel construction, ensuring longevity and resistance to corrosion. With its 115V power supply and a flow rate of up to 15 GPM, it delivers reliable circulation for various liquids. The 1-1/2" NPT connections provide easy installation and compatibility with standard piping systems. Its compact design allows for versatile placement in confined spaces, making it an ideal choice for retrofitting and space-constrained applications. This circulator is engineered with a heavy-duty motor that provides consistent performance, ensuring optimal flow rates even under challenging conditions. It is equipped with an adjustable speed control, enabling precise flow regulation to meet specific system requirements. The Taco 115V 1-1/2" FLGD SS CIRCULATOR is suitable for a wide range of industrial applications, including hydronic heating and cooling systems, process cooling, and liquid transfer. At our HVAC supply store, we offer the best prices and fast shipping for your products! Order now and experience the exceptional performance of the Taco 115V 1-1/2" FLGD SS CIRCULATOR.

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

Performance Data
Flow Range: 0-50
GPM Head Range: 0-14.5 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature, Cast Iron: 230 degrees F (110 degrees C)
Maximum Fluid Temperature, Stainless Steel: 220 degrees F (104 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 1-1/4", 1-1/2", or 2" Flanged

The Taco 0012 is specifically designed for high flow / medium head applications in large residential and light commercial systems. Ideal for large BTUH Boilers, 2" recirculation loops, Primary/Secondary loops, commercial water heaters and light commercial heating and cooling systems. The Bronze or Stainless Steel 0012 can be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0012 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs. The 0012-F4 is a direct replacement for the HV Series and the 0012-F4-1 is a direct replacement for the 2" Series using existing flanges.

Features:
Standard High Capacity Output Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Cast Iron or Stainless Steel Construction
Packed w/ 1-1/2" Flanges (194-1542SF)

Typical Applications
Hydronic Heating
Add-A-Zone Additions
Zoning with Circulators
Chilled Water Cooling
Domestic Water Systems

Replacement Parts List:
Casing O-Ring: 0012-006RP
Flange Gasket Set: 0012-020RP
Capacitor or PC Board: 009-018RPCartridge Assembly Complete: 0012-012RP
