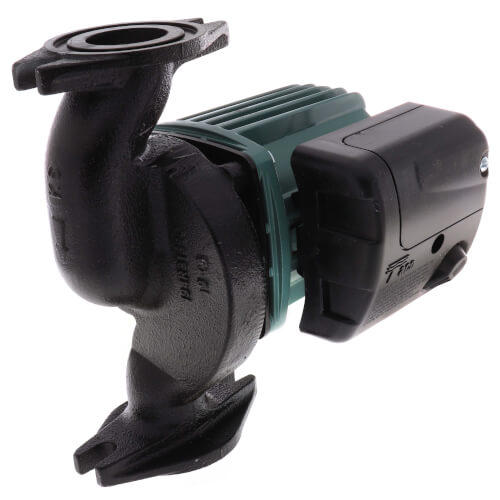

0012-MSF2-IFC | Circulator Pump | Cast Iron | 1/8 HP | 115V | Single Phase | 1.65A | 3250 RPM | Flanged | 42 GPM | 14ft Max Head | 125 PSI Max Press. | Integral Flow Check | Multi Speed | Series 0012 | Taco

Taco 0012-MSF2-IFC 1/6HP 115V 3SP 1 1/2" W/FLOWCH The Taco 0012-MSF2-IFC is a high-performance pump designed to provide reliable and efficient fluid handling in a variety of industrial applications. With its robust construction, advanced features, and proven performance, this pump is an excellent choice for demanding pumping tasks. Built to withstand harsh operating conditions, the 0012-MSF2-IFC features a durable cast iron body and stainless steel impeller, ensuring long-lasting operation and corrosion resistance. Its 1/6 HP motor delivers ample power for handling liquids with viscosities up to 100 SSU, making it suitable for pumping a wide range of fluids. The pump operates on a 115V power supply and utilizes a 3-speed design, allowing you to adjust the flow rate to meet specific application requirements. Its 1 1/2" NPT connections provide easy integration into existing piping systems. The 0012-MSF2-IFC's advanced design incorporates a flow check valve to prevent backflow and maintain system integrity. Its compact size and lightweight design make it easy to install in space-constrained areas. With its superior performance, reliability, and versatility, the Taco 0012-MSF2-IFC is an ideal solution for various industrial applications, including chemical processing, water treatment, fluid transfer, and more. Trust our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The 0012 3-Speed pump is a direct replacement for Grundfos,UPS43-44 3-Speed. Designed for high flow / low head applications.It’s ideal for large BTU boilers, primary boiler loops and largerecirculation systems. The Stainless Steel 0012 should be usedfor open, potable water applications.

The 3-speed circulator features aremovable, uni-body Integral Flow Check(IFC) that maximizes flow and preventsgravity flow - even in the tallestbuildings. Wiring is a snap thanks to anew extra roomy, easy access capacitorbox.

Features:

• 3-Speed Switch
• Fine tune to system requirements
• Highest performance & starting torque in class
• Heavy-Duty construction for longer life
• Removable high-flow Integral Flow Check (IFC)
  • Prevents gravity flow
  • Reduces installation costs
  • Improves pump performance
• Replaceable cartridge design
• Quiet, efficient operation
• Self lubricating, no mechanical seal
• Wide range of applications
• Cast Iron or St. Steel, flanged construction
