0012-BF4-J | Circulator Pump | Bronze | 1/8 HP | 115V | Single Phase | 1.33A | 3250 RPM | Flanged | 52 GPM | 14.5ft Max Head | 125 PSI Max Press. | Series 0012 | Taco

Taco 0012-BF4-J Circulator Pump115v CI Circulator W/BrzCart. The Taco 0012-BF4-J is a 115-volt cast iron circulator pump with a bronze cartridge. It is designed for use in residential and commercial heating and cooling systems. The pump has a maximum flow rate of 12 GPM and a maximum head of 20 feet. It is also self-priming and has a built-in check valve. The Taco 0012-BF4-J is a reliable and efficient circulator pump that is built to last. It is backed by a 1-year warranty. Shop our HVAC supply store for the best prices and fast shipping on Taco circulator pumps!

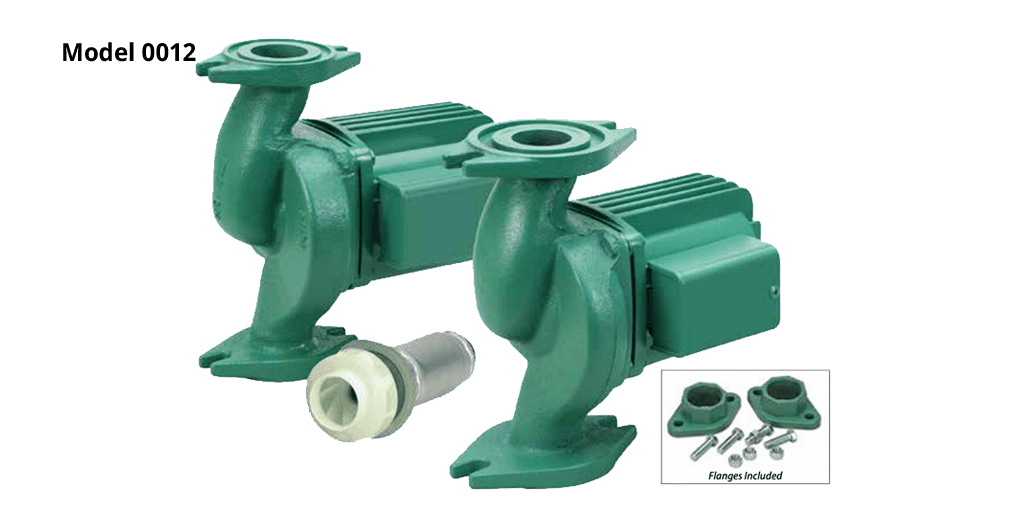

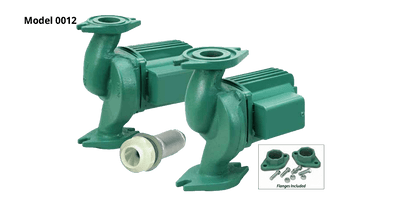

Model 0012 Cartridge Circulator

The High Velocity series Taco 0012 Cartridge Circulator is designed for high flow / medium head applications in Large Residential / Light Commercial Hydronic heating, Radiant heating, and Chilled Water cooling systems. The unique ACB anti-condensate baffle with ambient air flow prevents the build up of condensate on the motor windings when pumping chilled water. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0012 is ideal for high efficiency jobs where space is a premium. Available in Cast Iron or Bronze construction.

Application

The Taco 0012 is specifically designed for high flow / medium head applications in Large residential and Light Commercial systems. Ideal for large BTUH Boilers, 2" Recirculation Loops, Primary/Secondary Loops, Commercial Water Heaters and light Commercial Heating and Cooling systems. The Bronze 0012 can be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0012 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs. The 0012-F4 is a direct replacement for the HV Series and the 0012-F4-1 is a direct replacement for the 2" Series using existing flanges.
