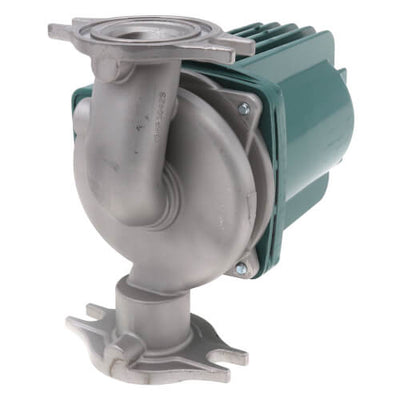

0011-SF4-IFC | Circulator Pump | Stainless Steel | 1/8 HP | 115V | Single Phase | 1.76A | 3250 RPM | Flanged | 31 GPM | 31ft Max Head | 125 PSI Max Press. | Integral Flow Check | Series 0011 | Taco

NCO 0011-SF4-IFC Taco Circulator Pump This 1/8 HP Taco circulator pump is designed for use in a variety of commercial and industrial applications. It features a stainless steel construction for durability and corrosion resistance, and a flange connection for easy installation and maintenance. The pump also includes a built-in flow switch to prevent dry running and damage to the pump. Additional Features: Voltage: 115V Speed: 3450 RPM Flow rate: up to 12 GPM Head: up to 25 feet Compact design for easy installation Suitable for use in a variety of applications, including hydronic heating systems, chilled water systems, and solar heating systems. Our HVAC supply store offers the best prices and fast shipping on NCO Taco circulator pumps and other HVAC equipment. Order yours today!

Rugged, Versatile, Quick and Easy to Install

With their self-lubricating design and no mechanical seal, Taco 00 ^® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ^® Series Cartridge Circulator and 00 IFCm^® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ^® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.

Taco 00 IFC ^® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.

Performance Data

Features

Applications

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

The 0011-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with 00® circulators on large residential / light commercial high head / medium flow applications such as hydronic or radiant heating, hydro-air fan coils, indirect water heaters ordomestic water recirculation systems. By locating the removable, spring-loaded IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC increases the 0011 flow performance over in-line checkvalves. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit. Taco's patented Priority Zoning circulator with built-in transformer, relay, priority switch and IFC in one complete, compact package to make it ideal for zoning.

Features:

• Integral Flow Check: Prevents gravity flow, Eliminates separate in-line flow check, Reduces installed cost, Improves system performance, Easy to service
• Unique replaceable cartridge-field serviceable
• Unmatched reliability-maintenance free
• Quiet, efficient operation
• Direct drive - Low power consumption
• Self lubricating, No mechanical seal
• Standard high capacity output - Compact design
• Wide range of applications
• Flanged connections

Replacement Parts List:
Casing O-Ring: 009-028RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0011-010RP
Valve Assembly Trans/Relay: 0012-021RP
